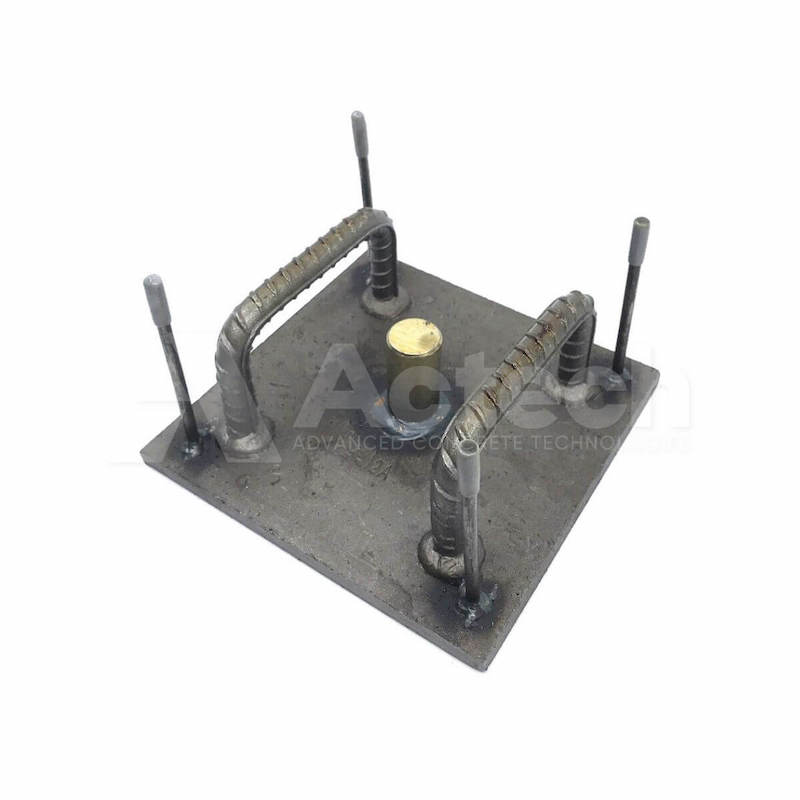

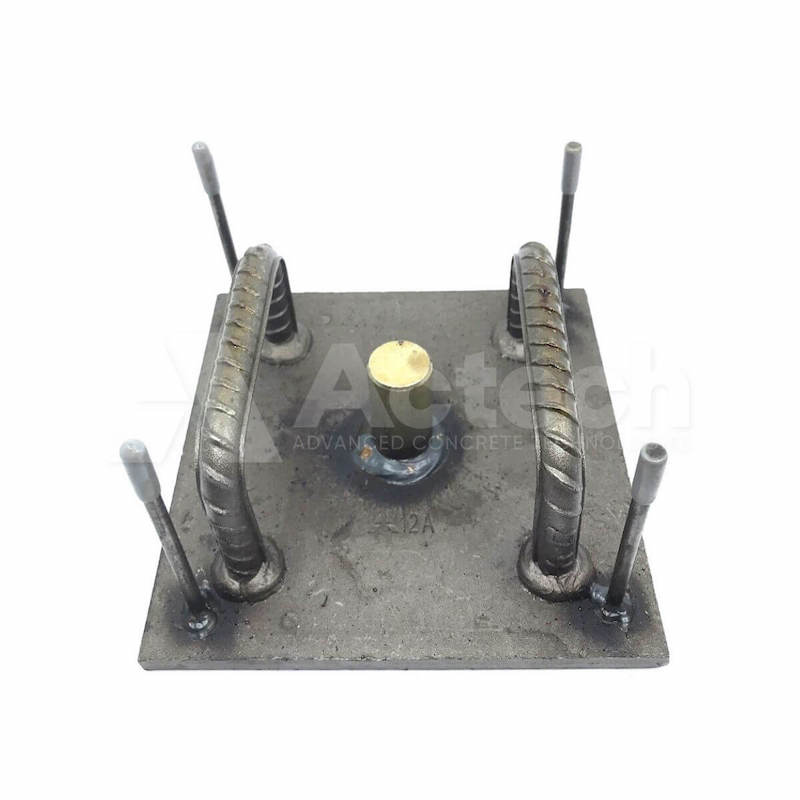

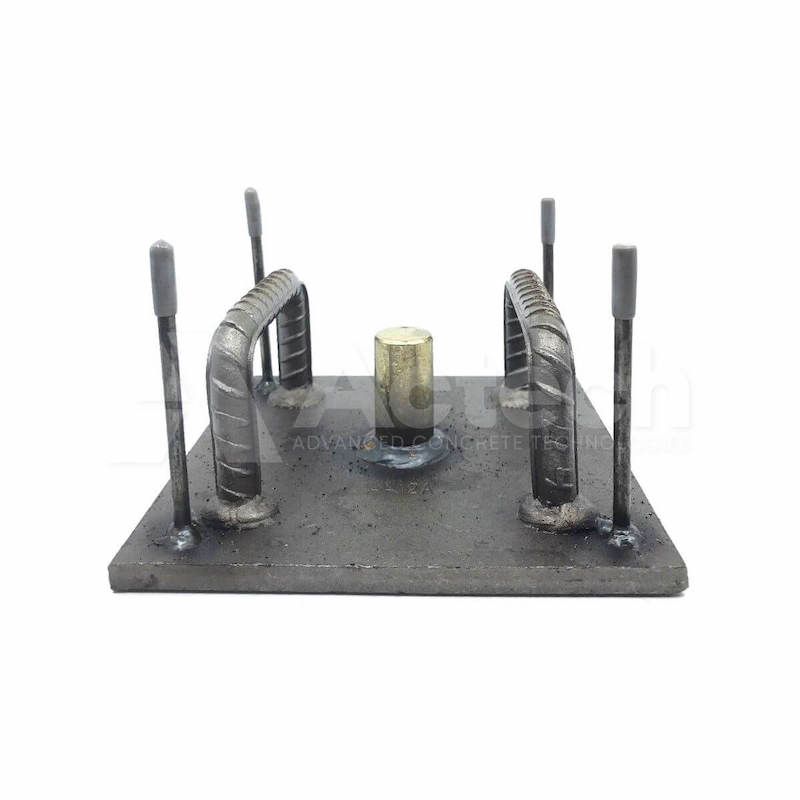

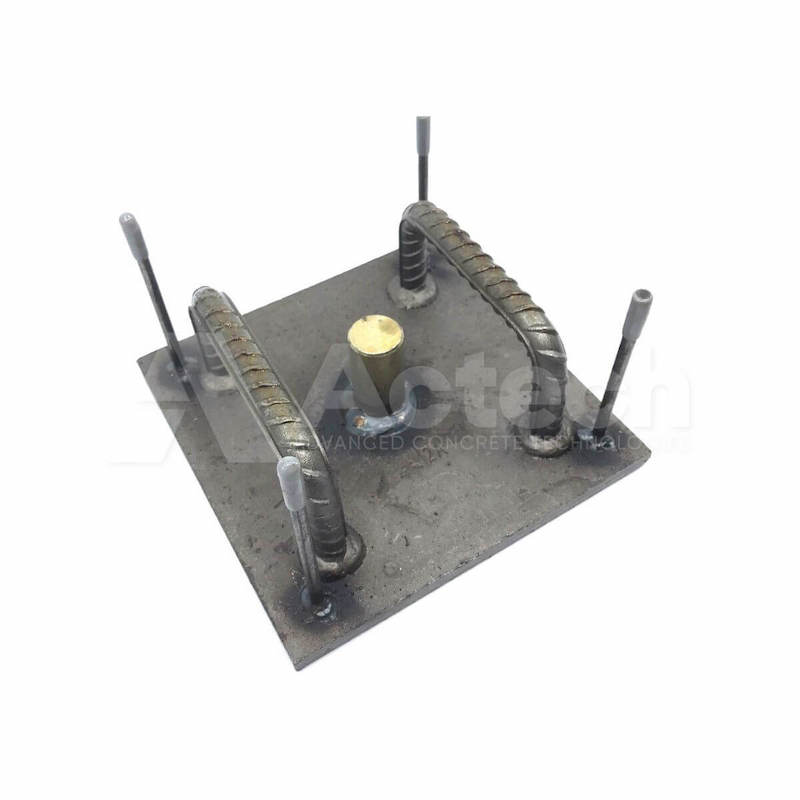

200x200x12 Cast-in Plate: 2 N16 90mm D Bars, M20,120 Legs

5PL2020-12A90L120R In Stock
Login to see prices Array

Cast-In Plate A Range

Name Code D-Bar Height D-Bar Type Ferrule Finish Leg Length Length Number of D-Bars Thickness Width
400 x 200 x 16 Cast-in Plate 4 N16 D Bars, M20, HT = 90 5PL4020-16A90 90 N16 Y Black - 400 4 16 200 Order
400 x 200 x 16 Cast-in Plate 4 N16 D Bars, M20, HT = 120 5PL4020-16A120 120 N16 Y Black - 400 4 16 200 Order
300 x 200 x 16 Cast-in Plate Black 3 N16 D Bars,M20 HT=90 5PL3020-16A90 90 N16 Y Black - 300 3 16 200 Order
300 x 200 x 16 Cast-in Plate Black 3 N16 D Bars, M20,HT=120 5PL3020-16A120 120 N16 Y Black - 300 3 16 200 Order
200x200x16 Cast-in Plate: 2 N16 D Bars, M20, Legs, HT=90 5PL2020-16A90L 90 N16 Y Black 90 200 2 16 200 Order
200x200x12 Cast-in Plate: HDG 2 N16 90mm D Bars, M20, Legs 5PL2020-12A90GL 90 N16 Y HDG 90 200 2 12 200 Order
200x200x12 Cast-in Plate: 2N16 90mm DBars, M20,120Legs,30mm 5PL2020-12A90L120RE - - - - - - - - - Order
200x200x12 Cast-in Plate: 2 N16 90mm D Bars, M20,150 Legs 5PL2020-12A90L150R 90 N16 Y Black 150 200 2 12 200 Order
200x200x12 Cast-in Plate: 2 N16 90mm D Bars, M20,120 Legs 5PL2020-12A90L120R 90 N16 Y Black 120 200 2 12 200 Order
200x200x12 Cast-in Plate: 2 N16 90mm D Bars, M20,115 Legs 5PL2020-12A90L115R 90 N16 Y Black 115 200 2 12 200 Order
200x200x12 Cast-in Plate: 2 N16 90mm D Bars, M20, Legs 5PL2020-12A90L 90 N16 Y Black - 200 2 12 200 Order
200x150x10 Cast-in Plate HDG 2 N16 D Bars, M20, Legs, 5PL2015-10A90GL 90 N16 Y HDG 90 200 2 10 150 Order
200x200x12 Cast-in Plate: HDG 2 N16 90mm D Bars, M20 F 5PL2020-12A90G 90 N16 Y HDG - 200 2 12 200 Order
200x200x12 Cast-in Plate: 2 N16 90mm D Bars, M20 5PL2020-12A90 90 N16 Y Black - 200 2 12 200 Order
200 x 200 x 12 Cast-in Plate: 2 N16 D Bars, M20, HT=150 5PL2020-12A150L 150 N16 Y Black 150 200 2 12 200 Order
200 x 200 x 12 Cast-in Plate: 2 N16 D Bars, M20, HT120 Legs 5PL2020-12A120L 120 N16 Y Black 120 200 2 12 200 Order
200 x 200 x 12 Cast-in Plate: 2 N16 D Bars, M20, HT=120 5PL2020-12A120 120 N16 Y Black - 200 2 12 200 Order
200 x 150 x 12 Cast-in Plate: 2 N16 D Bars, M20, 5PL2015-12A90 90 N16 Y Black - 200 2 12 150 Order
200 x 150 x 10 Cast-in Plate: 2 N16 DBars, M20, Legs, 5PL2015-10A90L 90 N16 Y Black 90 200 2 10 150 Order
200 x 120 x 12 Cast-in Plate: 2 N16 D Bars, M20 5PL2012-12A90 90 N16 Y Black 90 200 2 12 120 Order
200 x 120 x 10 Cast-in Plate: 2 N16 D Bars, M20, Legs, 5PL2012-10A90L 90 N16 Y Black 90 200 2 10 120 Order

Overview

200x200x12 Cast-in Plate: 2 N16 90mm D Bars, M20,120 Legs

Specifications

SKU 5PL2020-12A90L120R
Shipping Weight 4.764 kg
D-Bar Height 90
D-Bar Type N16
Ferrule Y
Finish Black
Leg Length 120
Length 200
Number of D-Bars 2
Thickness 12
Width 200
