ALTAS Bigfoot Ferrule Range

Name Code Chemical Type Effective Depth Length Material Style Thread Thread-length Type Desc X-Hole
BigFoot Ferrule M24 x 96mm Zinc - Square Base 509624.F.ZSB - - 96 Zinc BigFoot Square Base M24 58 Ferrule 18 Order
BigFoot Ferrule M24 x 96mm Gal 509624.F.GSB - - 96 HDG BigFoot Square Base M24 58 Ferrule 18 Order
BigFoot Ferrule M24 x 120 Zinc 512024.F.ZSB - - 120 Zinc BigFoot Square Base M24 82 Ferrule 18 Order
BigFoot Ferrule M24 x 120mm Gal - Square Base 512024.F.GSB - - 120 HDG BigFoot Square Base M24 82 Ferrule 18 Order
BigFoot Ferrule M20 x 96mm Zinc 509620.F.ZBF - 90 96 Zinc BigFoot M20 55 Ferrule 15 Order
BigFoot Ferrule M20 x 96mm Gal 509620.F.GBF - 90 96 HDG BigFoot M20 55 Ferrule 15 Order
BigFoot Ferrule M20 x 76mm Zinc 507620.F.ZBF - 70 76 Zinc BigFoot M20 38 Ferrule 15 Order
BigFoot Ferrule M20 x 76mm Gal 507620.F.GBF - 70 76 HDG BigFoot M20 38 Ferrule 15 Order
BigFoot Ferrule M20 x 120mm Zinc 512020.F.ZBF - 114 120 Zinc BigFoot M20 65 Ferrule 15 Order
BigFoot Ferrule M20 x 120mm Gal 512020.F.GBF - 114 120 HDG BigFoot M20 65 Ferrule 15 Order
BigFoot Ferrule M16 x 96mm Zinc 509616.F.ZBF - 90 96 Zinc BigFoot M16 55 Ferrule 15 Order
BigFoot Ferrule M16 x 96mm Gal 509616.F.GBF - 90 96 HDG BigFoot M16 55 Ferrule 15 Order
BigFoot Ferrule M16 x 76mm Zinc 507616.F.ZBF - 70 76 Zinc BigFoot M16 38 Ferrule 15 Order
BigFoot Ferrule M16 x 76mm Gal 507616.F.GBF - 70 76 HDG BigFoot M16 38 Ferrule 15 Order
BigFoot Ferrule M16 x 65mm Gal 506516.F.GBF - 59 65 HDG BigFoot M16 30 Ferrule 15 Order
BigFoot Ferrule M12 x 96mm Zinc 509612.F.ZBF - 90 96 Zinc BigFoot M12 55 Ferrule 12 Order
BigFoot Ferrule M12 x 96mm Gal 509612.F.GBF - 90 96 HDG BigFoot M12 55 Ferrule 12 Order
BigFoot Ferrule M12 x 76mm Zinc 507612.F.ZBF - 70 76 Zinc BigFoot M12 38 Ferrule 12 Order
BigFoot Ferrule M12 x 76mm Gal 507612.F.GBF - 70 76 HDG BigFoot M12 38 Ferrule 12 Order
BigFoot Ferrule M12 x 65mm Zinc 506512.F.ZBF - 59 65 Zinc BigFoot M12 30 Ferrule 12 Order
BigFoot Ferrule M12 x 65mm Gal 506512.F.GBF - 59 65 HDG BigFoot M12 30 Ferrule 12 Order
BigFoot Ferrule M12 x 50mm Zinc 505012.F.ZBF - 44 50 Zinc BigFoot M12 19.5 Ferrule 12 Order
BigFoot Ferrule M12 x 50mm Gal 505012.F.GBF - 44 50 HDG BigFoot M12 19.5 Ferrule 12 Order
BigFoot Ferrule M10 x 45mm Zinc 504510.F.ZBF - 41 45 Zinc BigFoot M10 22 Ferrule 8 Order
BigFoot Ferrule M10 x 45mm Gal 504510.F.GBF - 41 45 HDG BigFoot M10 22 Ferrule 8 Order

Overview

Product Description

Actech has the widest range of Ferrules!
Our Patented Ferrules include an extra M8 thread at the cross hole which allow for easy integration of the base of the ferrule to Ferrule Cross Chairs!
That is why they are called DUO – as they have 2 threads!
Even better the Bigfoot range also have this extra thread so you can connect Bigfoot ferrules into the same Ferrule Cross Chairs.

Specifications

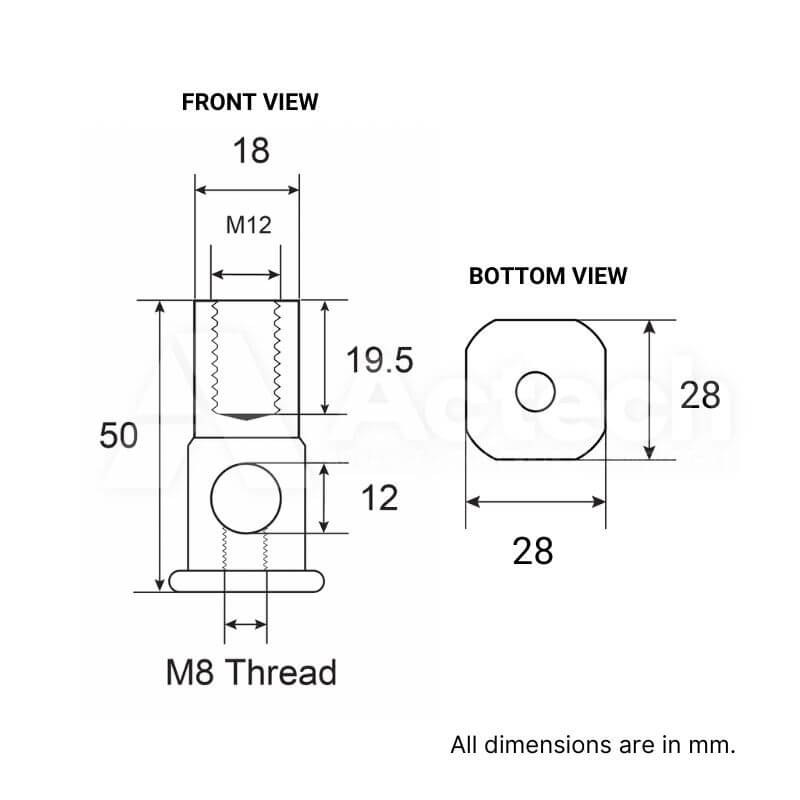

SKU 505012.F.GBF
Shipping Weight 0.24429 kg
