Grout Tube Range

Name Code Diameter GT Length GT Material Type
Metal Spiral Grout Tube 90mm x 5.8m 419058 90 5.8m Metal Spiral Duct Order
Metal Spiral Grout Tube 90mm x 2.5m 419025 90 2.5m Metal Spiral Duct Order
Metal Spiral Grout Tube 80mm x 5.8m 418058 80 5.8m Metal Spiral Duct Order
Metal Spiral Grout Tube 80mm x 2.5m 418025 80 2.5m Metal Spiral Duct Order
Metal Spiral Grout Tube 70mm x 5.8m 417058 70 5.8m Metal Spiral Duct Order
Metal Spiral Grout Tube 70mm x 2.5m 417025 70 2.5m Metal Spiral Duct Order
Metal Spiral Grout Tube 60mm x 5.8m 416058 60 5.8m Metal Spiral Duct Order
Metal Spiral Grout Tube 60mm x 2.5m 416025 60 2.5m Metal Spiral Duct Order
Metal Spiral Grout Tube 50mm x 5.8m 415058 50 5.8m Metal Spiral Duct Order
Metal Spiral Grout Tube 50mm x 2.5m 415025 50 2.5m Metal Spiral Duct Order
Metal Spiral Grout Tube 40mm x 5.8m 414058 40 5.8m Metal Spiral Duct Order
Metal Spiral Grout Tube 40mm x 2.5m 414025 40 2.5m Metal Spiral Duct Order
Metal Spiral Grout Tube 100mm x 2.5m 419925 100 2.5m Metal Spiral Duct Order

Overview

Product Description

Grout tubes, also known as spiral ducts, are commonly utilised in the concrete and construction industries. Grout tubes are commonly cast in panels to locate insitu starter bars or dowels that join concrete parts together in particular precast applications such as casting bridge beams and other commercial concrete segments.

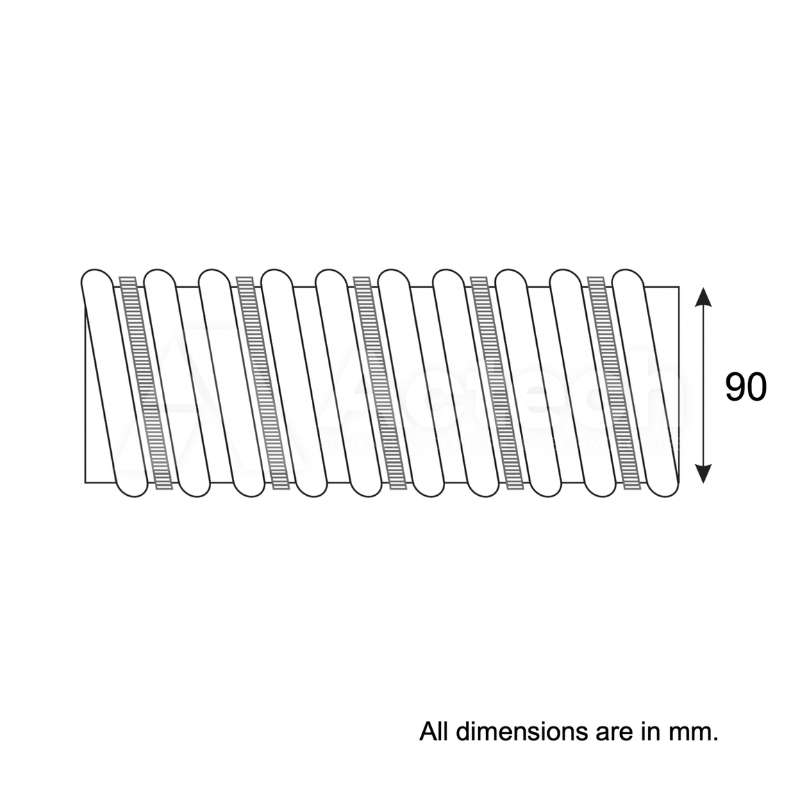

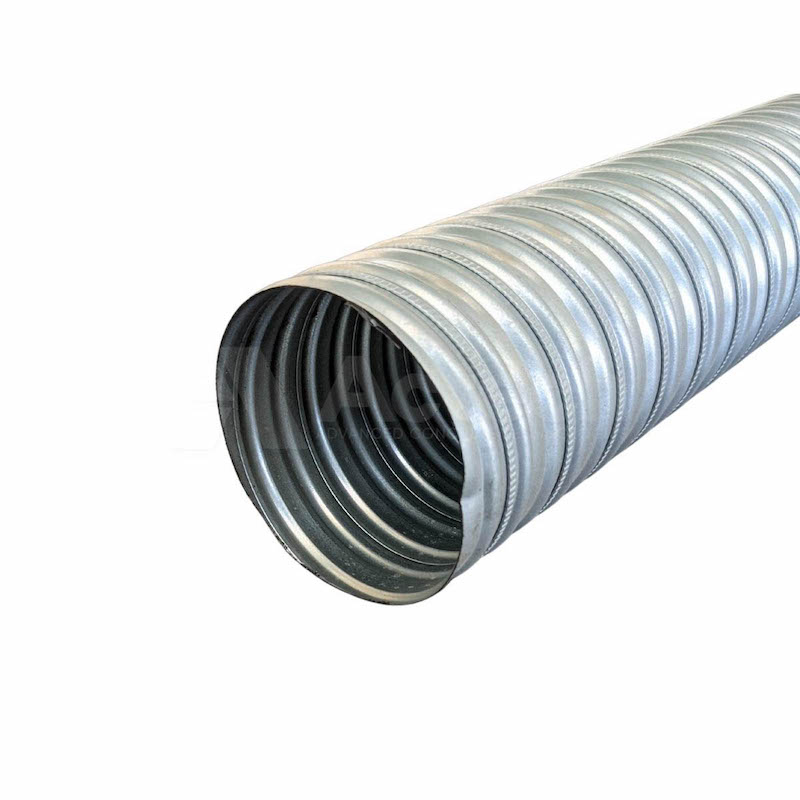

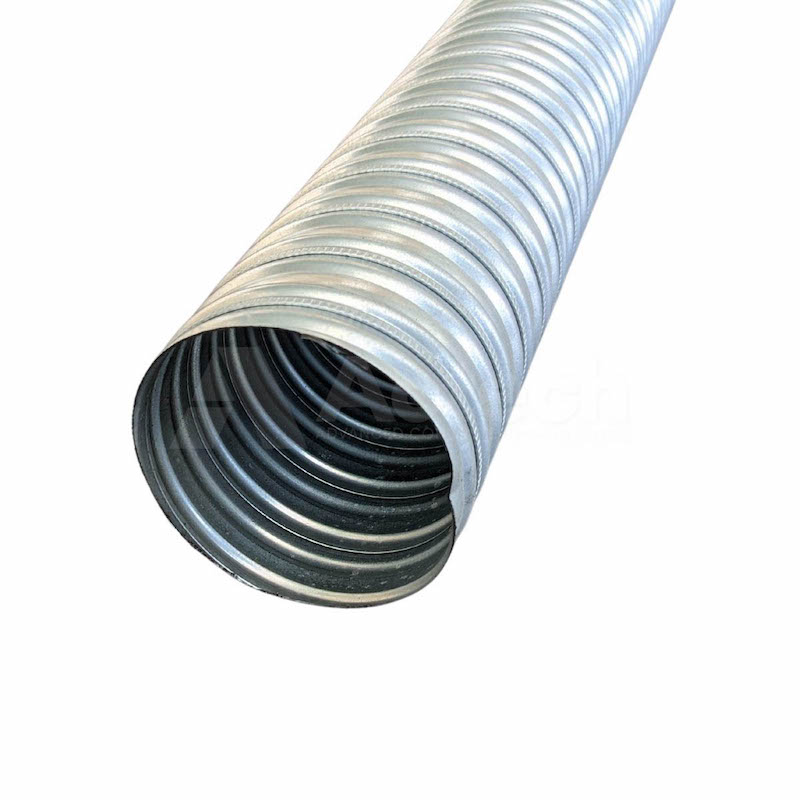

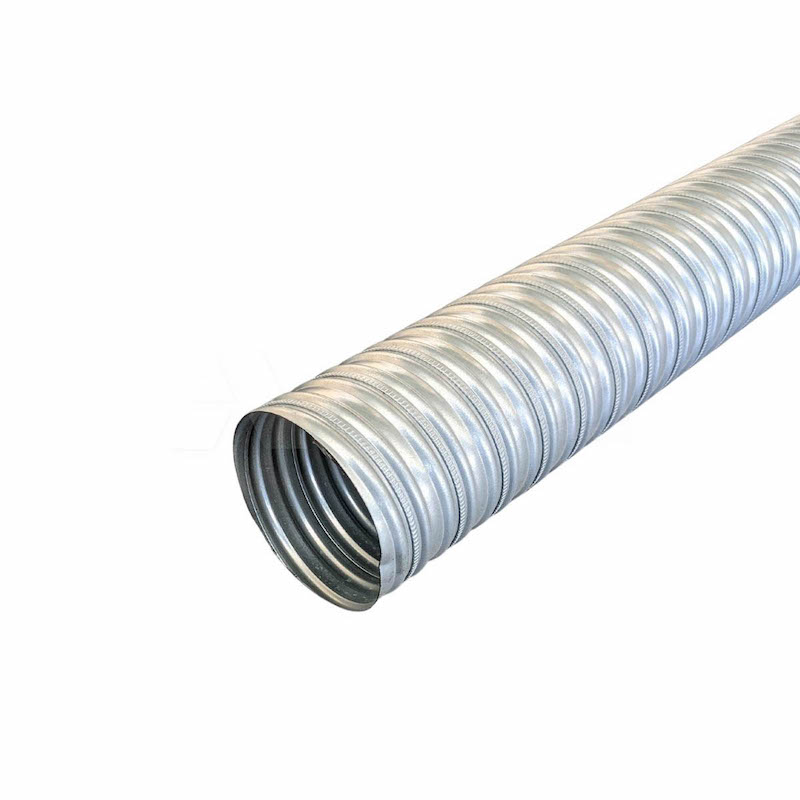

A void in a concrete piece is created using Metal Spiral Grout Tube. Prior to the pouring of concrete, it is placed in formwork and must be fastened in the appropriate location. Because it is comprised of metal, it has exceptional adhesive characteristics to the hardened concrete.

Spiral Grout Tubes come in various lengths and diameters. 2.5 and 5.8 are the standard lengths that Actech provides. However, custom lengths are available on request.

Metal Spiral Grout Tube can be stored outdoors but should be preferably kept dry. Any surface deterioration/rusting should be removed or treated with appropriate rust remover/preventative treatments.

Specifications

SKU 419925
Shipping Weight 1.02 kg
Diameter 100
Length 2.5m
Material Metal
Type Spiral Duct

Documents

Grout Tube TDS (Technical Data)
