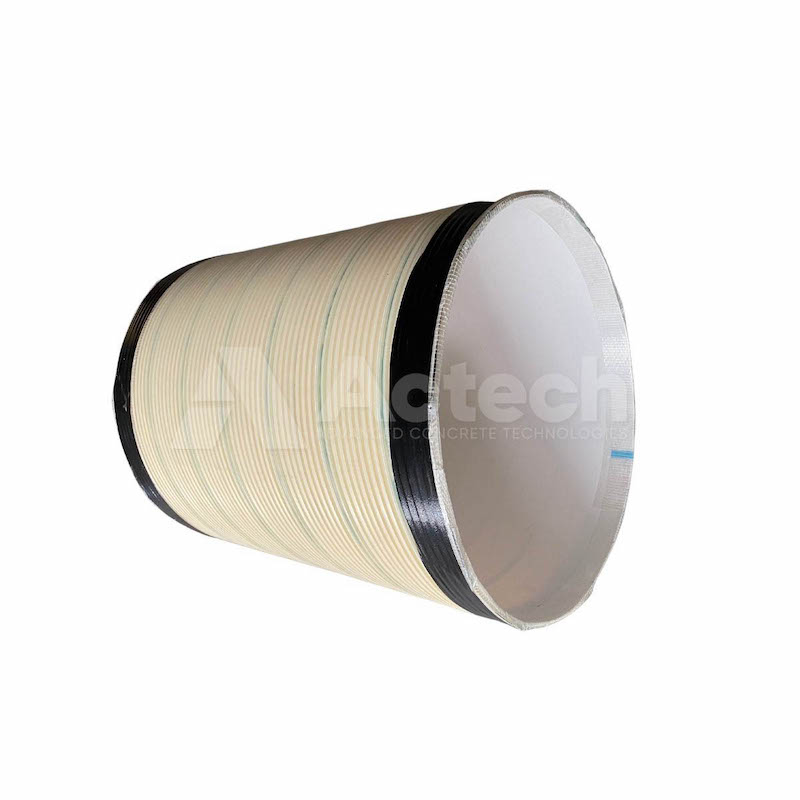

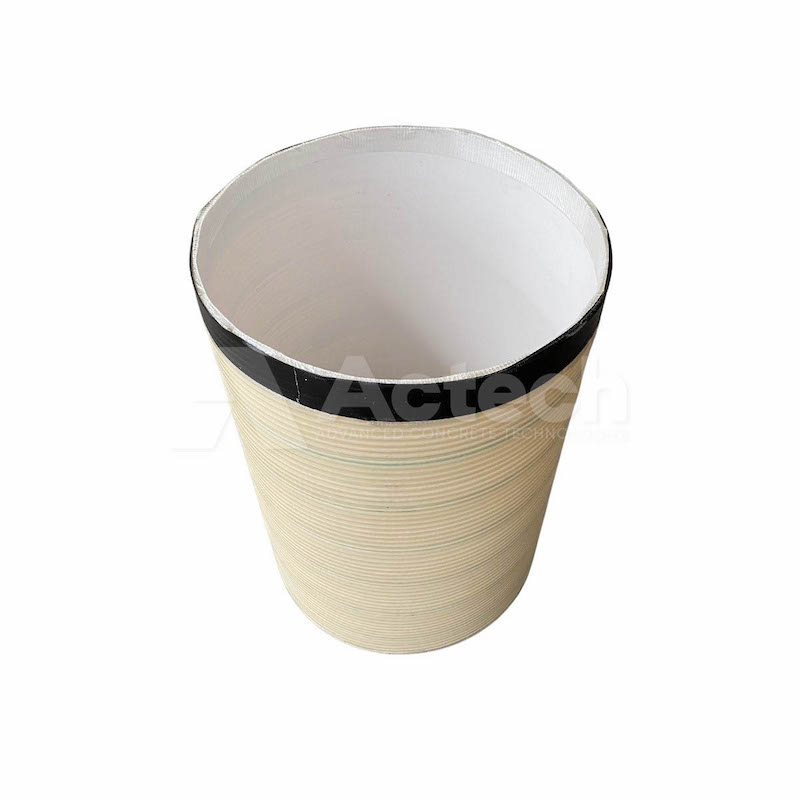

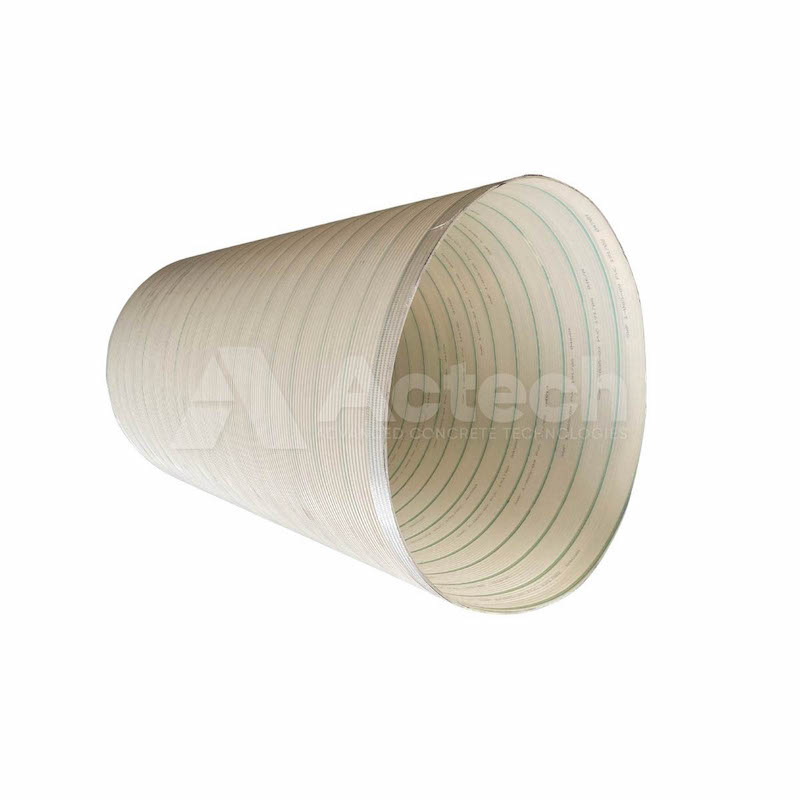

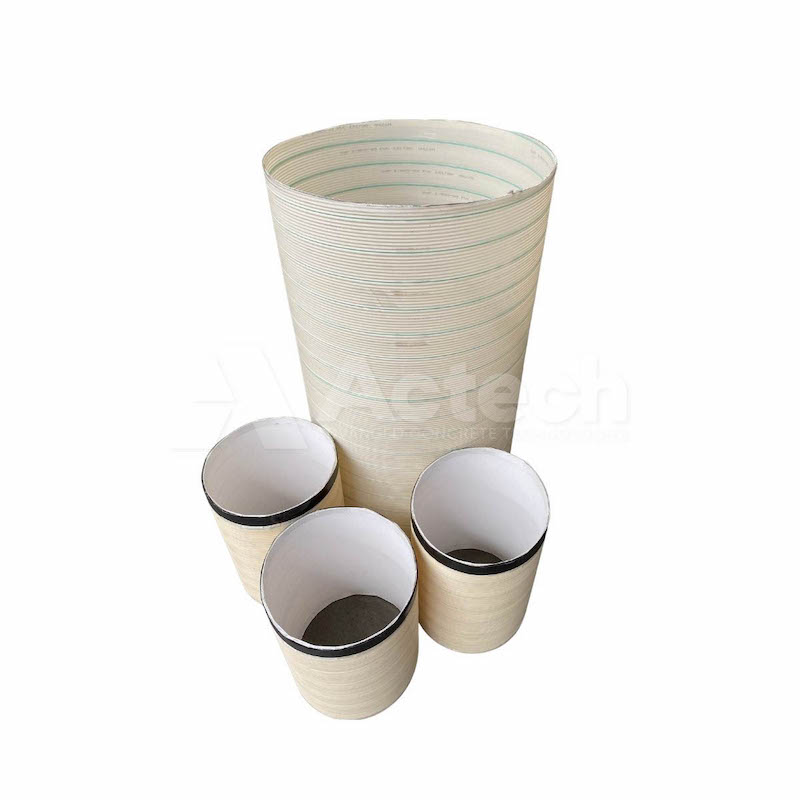

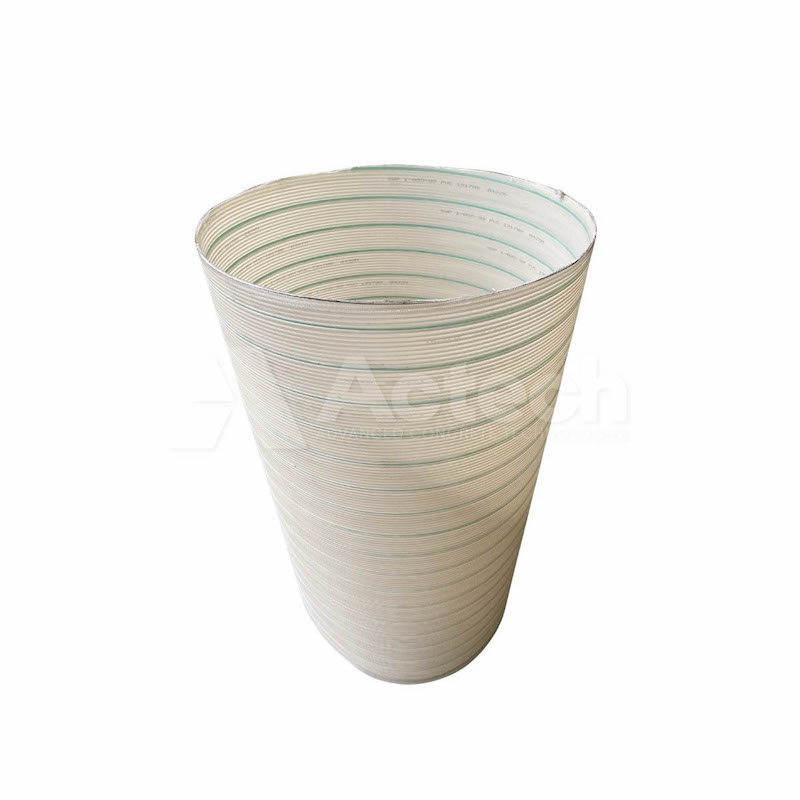

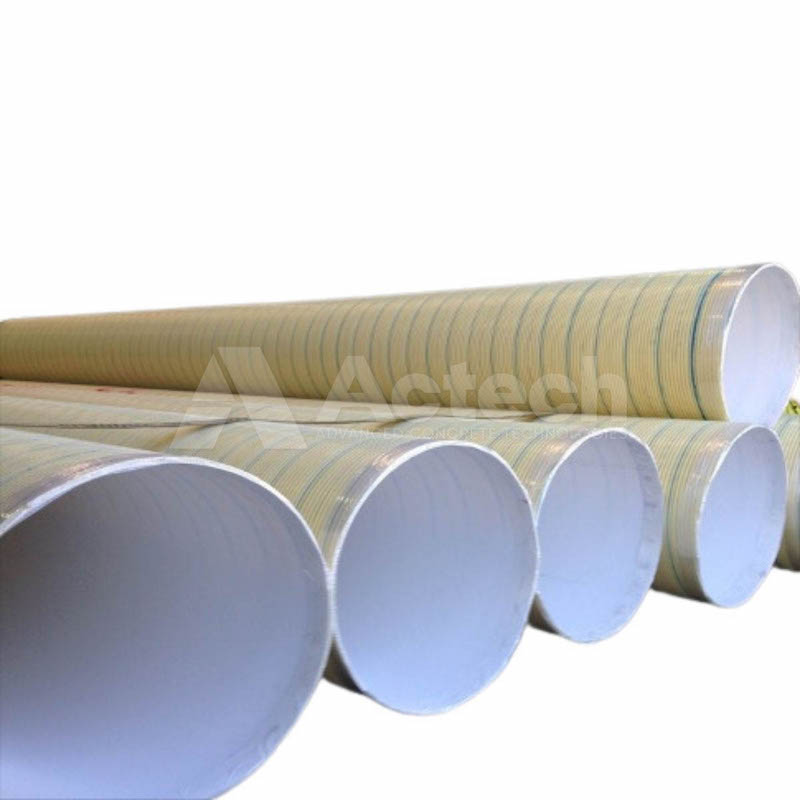

PVC 800mm Dia Lined 085 Profile Formwork Column

41S0800L85
Login to see prices Array

PVC Column Tube Range

Name Code Brand Inner Diameter Material
PVC 950mm Dia Unlined 085 Profile Formwork Column 41S0950U85 SWP Australia Pty Ltd 950 PVC Order
PVC 950mm Dia Lined 085 Profile Formwork Column 41S0950L85 SWP Australia Pty Ltd 950 PVC Order
PVC 900mm Dia Unlined R2 Profile Formwork Column 41S0900UR2 SWP Australia Pty Ltd 900 PVC Order
PVC 900mm Dia Unlined 085 Profile Formwork Column 41S0900U85 SWP Australia Pty Ltd 900 PVC Order
PVC 900mm Dia Lined 085 Profile Formwork Column 41S0900L85 SWP Australia Pty Ltd 900 PVC Order
PVC 850mm Dia Unlined 085 Profile Formwork Column 41S0850U85 SWP Australia Pty Ltd 850 PVC Order
PVC 850mm Dia Lined 085 Profile Formwork Column 41S0850L85 SWP Australia Pty Ltd 850 PVC Order
PVC 800mm Dia Unlined 085 Profile Formwork Column 41S0800U85 SWP Australia Pty Ltd 800 PVC Order
PVC 800mm Dia Lined 085 Profile Formwork Column 41S0800L85 SWP Australia Pty Ltd 800 PVC Order
PVC 750mm Dia Unlined 085 Profile Formwork Column 41S0750U85 SWP Australia Pty Ltd 750 PVC Order
PVC 750mm Dia Lined 085 Profile Formwork Column 41S0750L85 SWP Australia Pty Ltd 750 PVC Order
PVC 700mm Dia Unlined 085 Profile Formwork Column 41S0700U85 SWP Australia Pty Ltd 700 PVC Order
PVC 700mm Dia Lined 085 Profile Formwork Column 41S0700L85 SWP Australia Pty Ltd 700 PVC Order
PVC 650mm Dia Unlined 085 Profile Formwork Column 41S0650U85 SWP Australia Pty Ltd 650 PVC Order
PVC 650mm Dia Lined 085 Profile Formwork Column 41S0650L85 SWP Australia Pty Ltd 650 PVC Order
PVC 600mm Dia Unlined R2 Profile Formwork Column 41S0600UR2 SWP Australia Pty Ltd 600 PVC Order
PVC 600mm Dia Unlined 085 Profile Formwork Column 41S0600U85 SWP Australia Pty Ltd 600 PVC Order
PVC 600mm Dia Lined 085 Profile Formwork Column 41S0600L85 SWP Australia Pty Ltd 600 PVC Order
PVC 550mm Dia Unlined 085 Profile Formwork Column 41S0550U85 SWP Australia Pty Ltd 550 PVC Order
PVC 550mm Dia Lined 085 Profile Formwork Column 41S0550L85 SWP Australia Pty Ltd 550 PVC Order
PVC 500mm Dia Unlined 085 Profile Formwork Column 41S0500U85 SWP Australia Pty Ltd 500 PVC Order
PVC 500mm Dia Lined 085 Profile Formwork Column 41S0500L85 SWP Australia Pty Ltd 500 PVC Order
PVC 450mm Dia Unlined 085 Profile Formwork Column 41S0450U85 SWP Australia Pty Ltd 450 PVC Order
PVC 450mm Dia Lined 085 Profile Formwork Column 41S0450L85 SWP Australia Pty Ltd 450 PVC Order
PVC 400mm Dia Unlined 085 Profile Formwork Column 41S0400U85 SWP Australia Pty Ltd 400 PVC Order
PVC 400mm Dia Lined 085 Profile Formwork Column 41S0400L85 SWP Australia Pty Ltd 400 PVC Order
PVC 350mm Dia Unlined 085 Profile Formwork Column 41S0350U85 SWP Australia Pty Ltd 350 PVC Order
PVC 350mm Dia Lined 085 Profile Formwork Column 41S0350L85 SWP Australia Pty Ltd 350 PVC Order
PVC 300mm Dia Unlined 085 Profile Formwork Column 41S0300U85 SWP Australia Pty Ltd 300 PVC Order
PVC 300mm Dia Lined 085 Profile Formwork Column 41S0300L85 SWP Australia Pty Ltd 300 PVC Order
PVC 250mm Dia Unlined 085 Profile Formwork Column 41S0250U85 SWP Australia Pty Ltd 250 PVC Order
PVC 250mm Dia Lined 085 Profile Formwork Column 41S0250L85 SWP Australia Pty Ltd 250 PVC Order
PVC 1500mm Dia Unlined R2 Profile Formwork Column 41S1500UR2 SWP Australia Pty Ltd 1500 PVC Order
PVC 1200mm Dia Unlined R2 Profile Formwork Column 41S1200UR2 SWP Australia Pty Ltd 1200 PVC Order
PVC 1200mm Dia Unlined 085 Profile Formwork Column 41S1200U85 SWP Australia Pty Ltd 1200 PVC Order
PVC 1200mm Dia Lined 085 Profile Formwork Column 41S1200L85 SWP Australia Pty Ltd 1200 PVC Order
PVC 1100mm Dia Unlined 085 Profile Formwork Column 41S1100U85 SWP Australia Pty Ltd 1100 PVC Order
PVC 1100mm Dia Lined 085 Profile Formwork Column 41S1100L85 SWP Australia Pty Ltd 1100 PVC Order
PVC 1000mm Dia Unlined 085 Profile Formwork Column 41S1000U85 SWP Australia Pty Ltd 1000 PVC Order
PVC 1000mm Dia Lined 085 Profile Formwork Column 41S1000L85 SWP Australia Pty Ltd 1000 PVC Order

Overview

SWP PVC concrete column formwork available in round and oval shape – made to measure. Only available in WA.

Product Applications

  • Column formwork (above ground)
  • Caissons and foundation formwork (in-ground)

Finishes

  • Structural:  (un-lined), spiral line will show on finished column
  • Architectural (lined): column forms are lined with a rigid plastic sleeve, only a vertical line will show

Profiles

  • 85 profile – most used profile
  • 85F profile – low-cost profile, mostly used for foundations
  • R2 profiles – used for higher stiffness requirements and standard diameter range from DN850 to DN1200.
  • R3/R5/R6 profiles – high strength profiles for big diameter (up to DN2400) and long length applications (up to 9+ m), e.g. bridge columns

Note : the rate of pour affects the load on the formwork. This chart is for the safe height of column that can be poured in an hour (in extreme temperature conditions this time may vary).

Specifications

SKU 41S0800L85
Shipping Weight 0 kg
Brand SWP Australia Pty Ltd
Inner Diameter 800
Material PVC
