Overview
Product Description

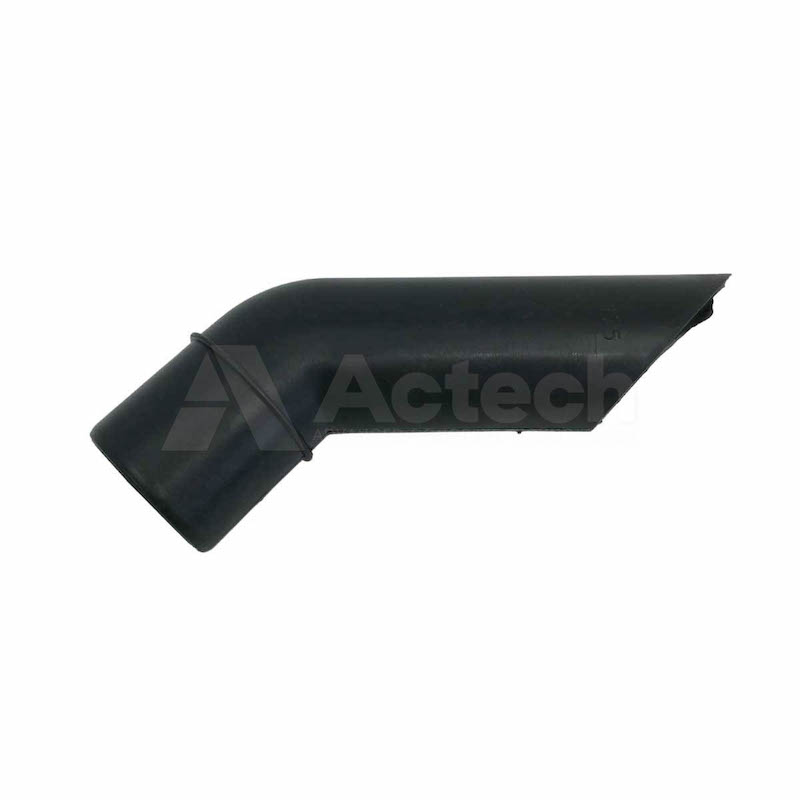

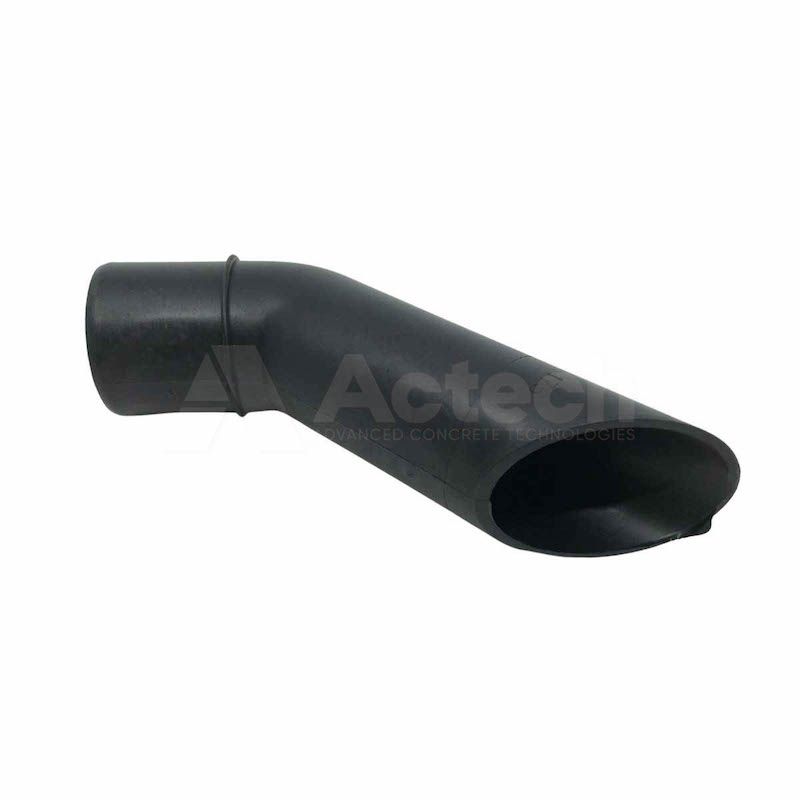

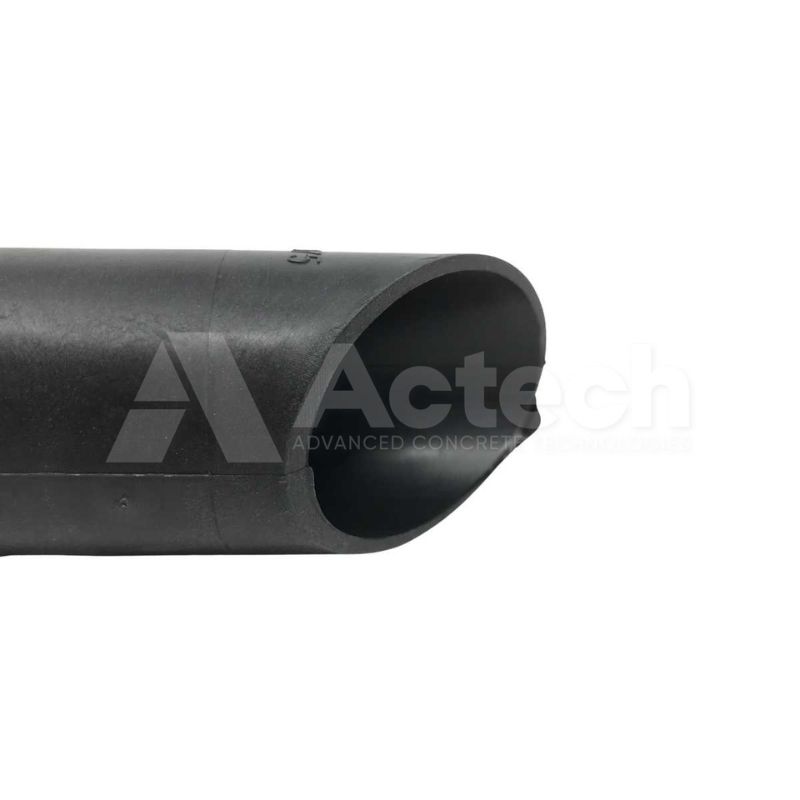

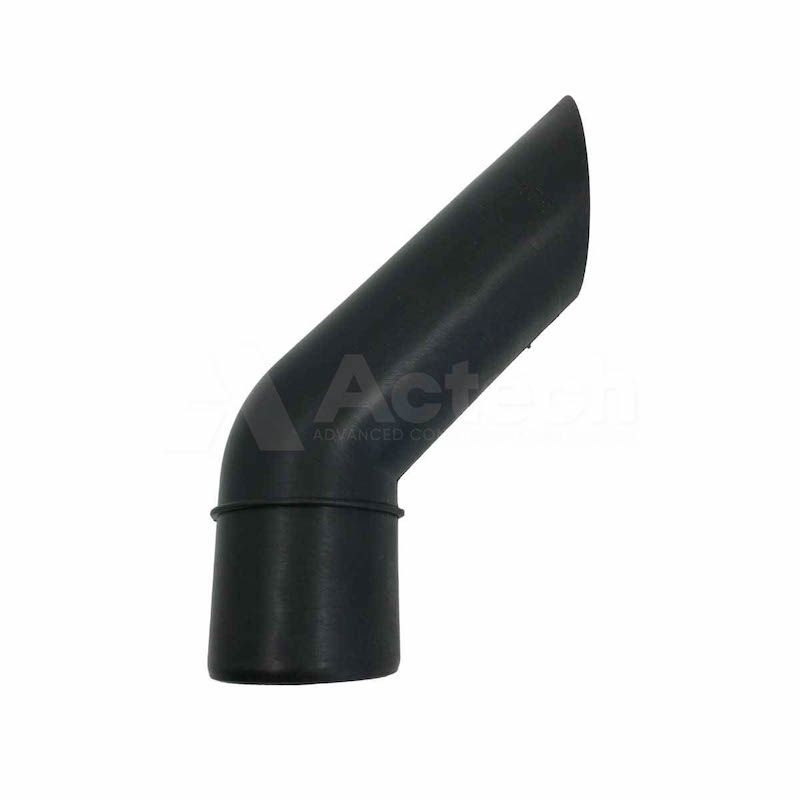

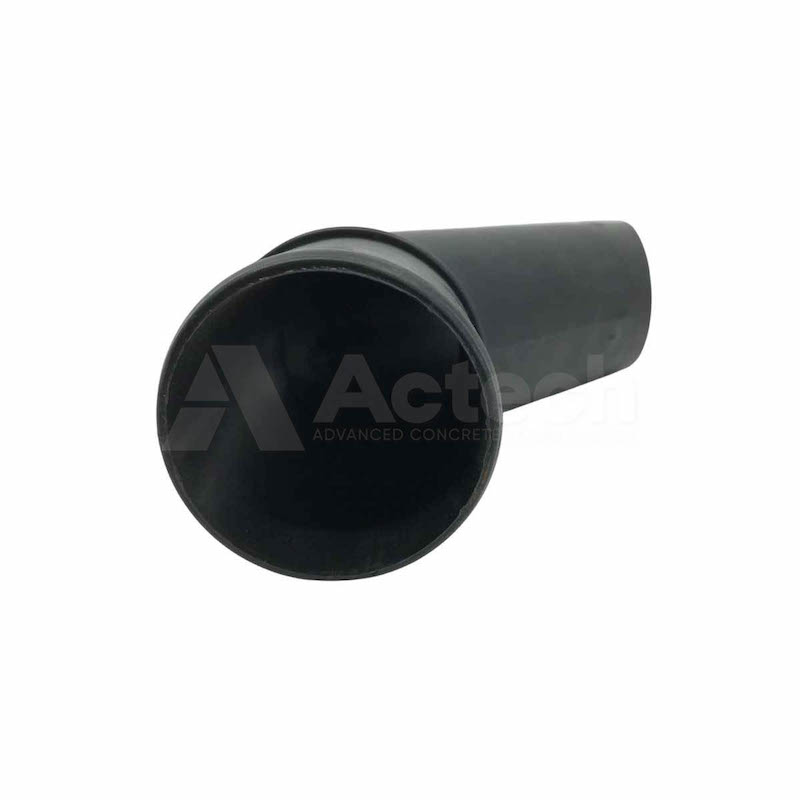

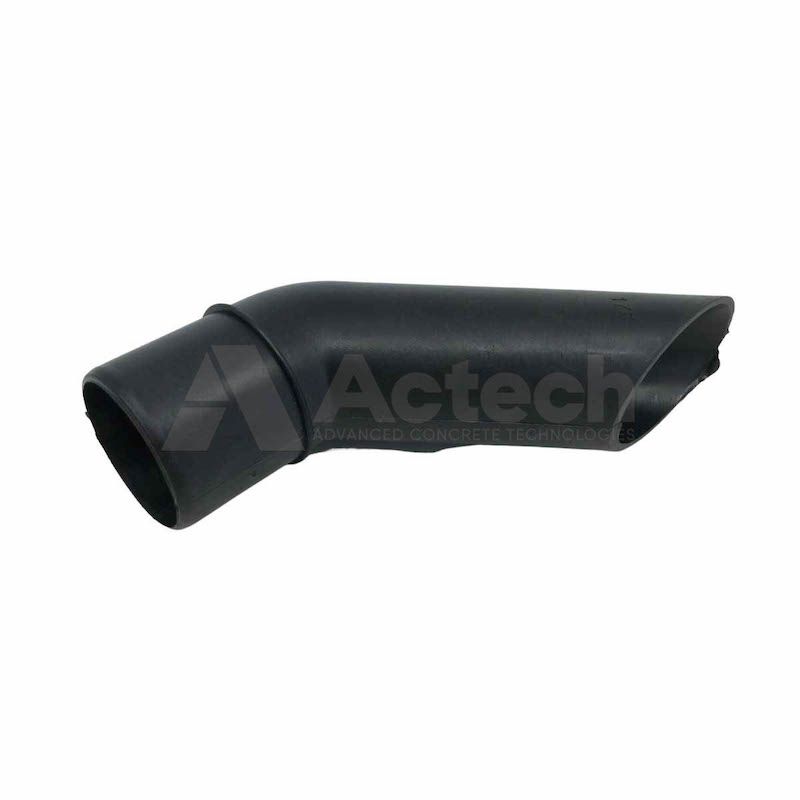

45 Degree Grout Tube Elbows coming a variety of sizes, each size designed to work with a 50mm grout tube when the 50mm grout tube is slid over the round end of the 45 Degree Elbow OR work with a 40mm grout tube when the 40mm grout tube is slid inside the round end of the 45 Degree Elbow. Most of the time taping is not required as there is a tight fit.

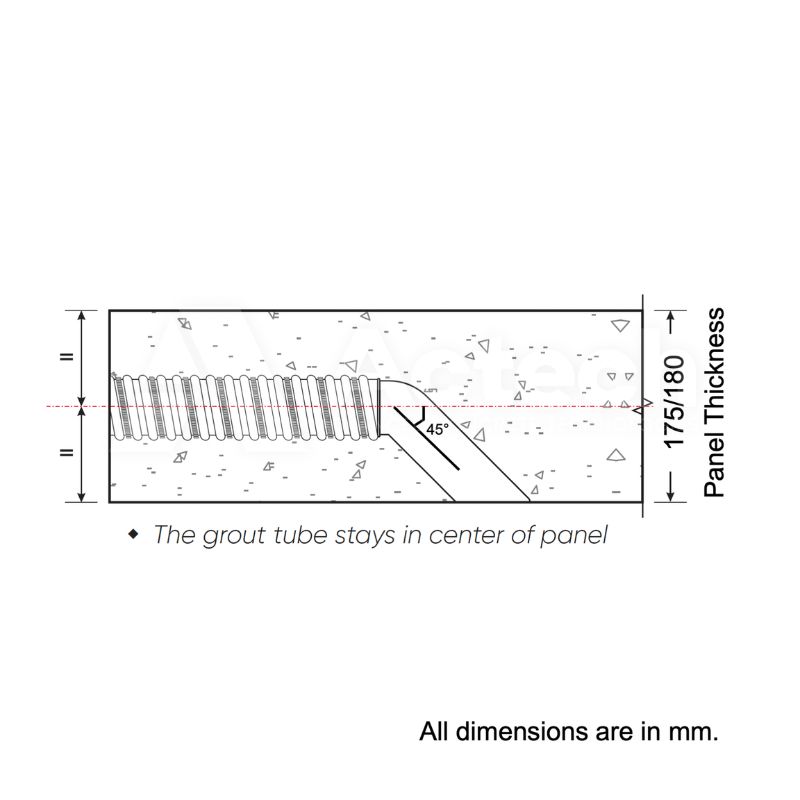

These 45 Degree Grout Tube Elbows also come in a variety of sizes – each size reflect the panel thickness so that the round port of the grout tube would be aligned to the center of the panel.
Grout Tubes are also known as Spiral Duct and used primarily to form a void in a precast element for later connection to another concrete element.
Product Advantages
- Works with 50mm and 40mm grout tubes immediately
- Can also work with 60mm and 70mm grout tube using adaptors
- Comes in a variety of Panel Depths, 150mm, 175/180mm and 200mm
- Are available with or without pre-taping
