MGP Timber Range

Name Code Height Length Material Width
70x35mm MGP10 Pine 6m Length (Untreated) 431238 35 6000 Machine Grade Pine 70 Order
70x35mm MGP10 Pine 5.4m Length (Untreated) 431237 35 5400 Machine Grade Pine 70 Order
70x35mm MGP10 Pine 5.1m Length (Untreated) 431239 35 5100 Machine Grade Pine 70 Order
70x35mm MGP10 Pine 4.8m Length (Untreated) 431236 35 4800 Machine Grade Pine 70 Order
70x35mm MGP10 Pine 4.2m Length (Untreated) 431235 35 4200 Machine Grade Pine 70 Order
70x35mm MGP10 Pine 3.6m Length (Untreated) 431234 35 3600 Machine Grade Pine 70 Order
70x35mm MGP10 Pine 3.0m Length (Untreated) 431233 35 3000 Machine Grade Pine 70 Order
70x35mm MGP10 Pine 2.7m Length (Untreated) 431232 35 2700 Machine Grade Pine 70 Order
70x35mm MGP10 Pine 2.4m Length (Untreated) 431231 35 2400 Machine Grade Pine 70 Order

Overview

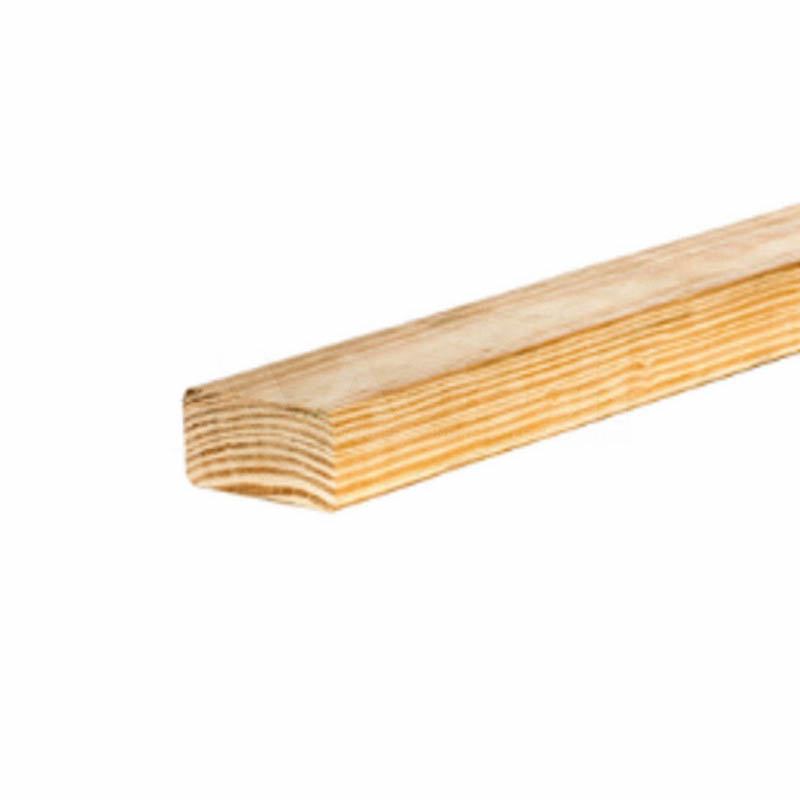

Product Description

MGP stands for machine graded pine, and is a system used for particular pines, especially radiata, slash and Caribbean. Instead of being based on the bending strength of the piece, MGP is a measure of its modulus of elasticity (MOE), which takes into account other properties, such as stiffness, compressive strength and shear strength.

The higher the MOE of a piece, the stiffer it is. When this is measured by an MGP machine stress grader, the board is given a grade which is simply an abbreviation of the MOE category that it falls into.

That is:

MGP 10 has an MOE of 10,000 megapascals (MPa)
MGP 12 has an MOE of 12,700 Mpa
MGP 15 has an MOE of 15,200 Mpa

Each piece is manufactured to comply with Australian standards (AS/NZS 1748). The Available structural grade at Actech is MGP10.

  • Sourced from leading manufacturers in Australia and globally
  • Kiln-dried
  • Environmentally sustainable

Specifications

SKU 431237
Shipping Weight 1.07862 kg
Height 35
Length 5400
Material Machine Grade Pine
Width 70

Documents
