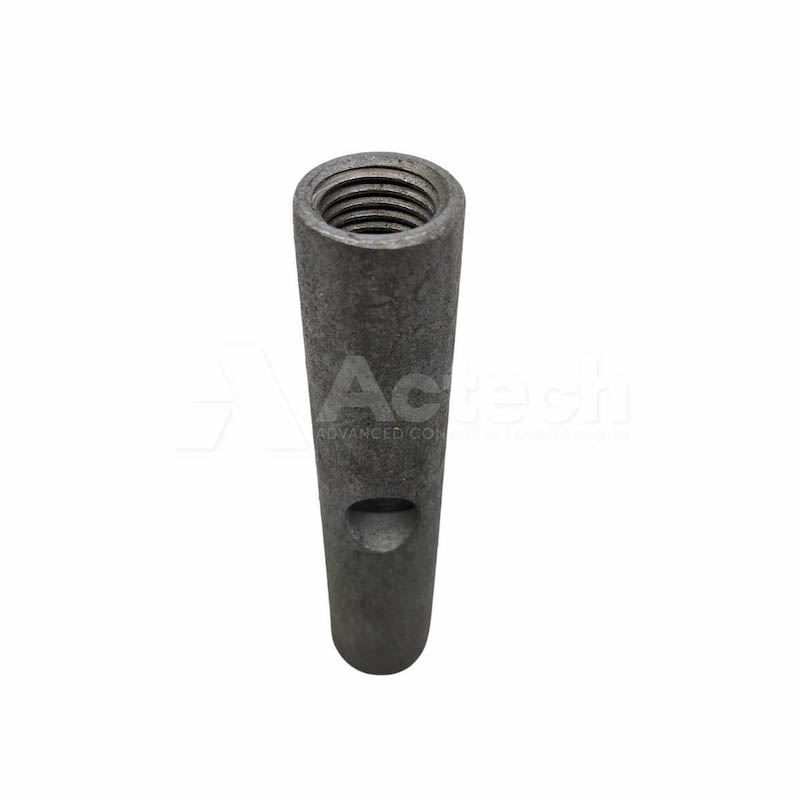

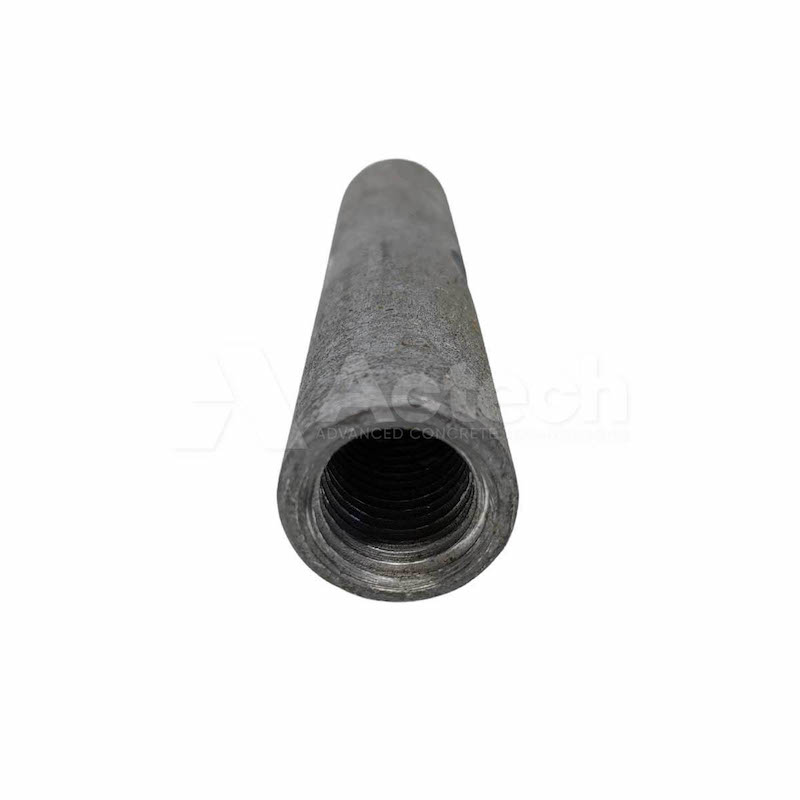

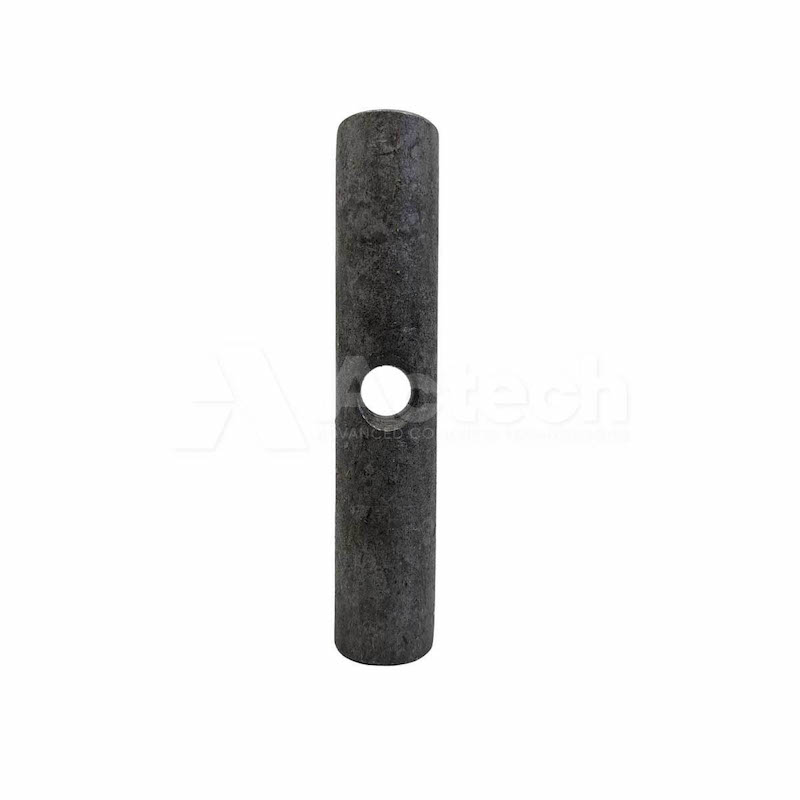

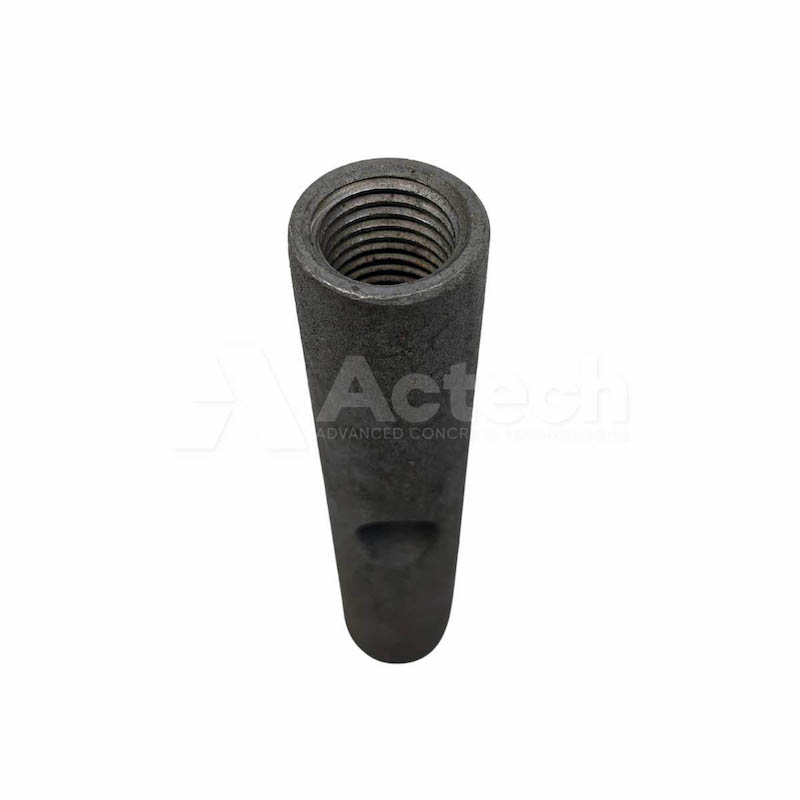

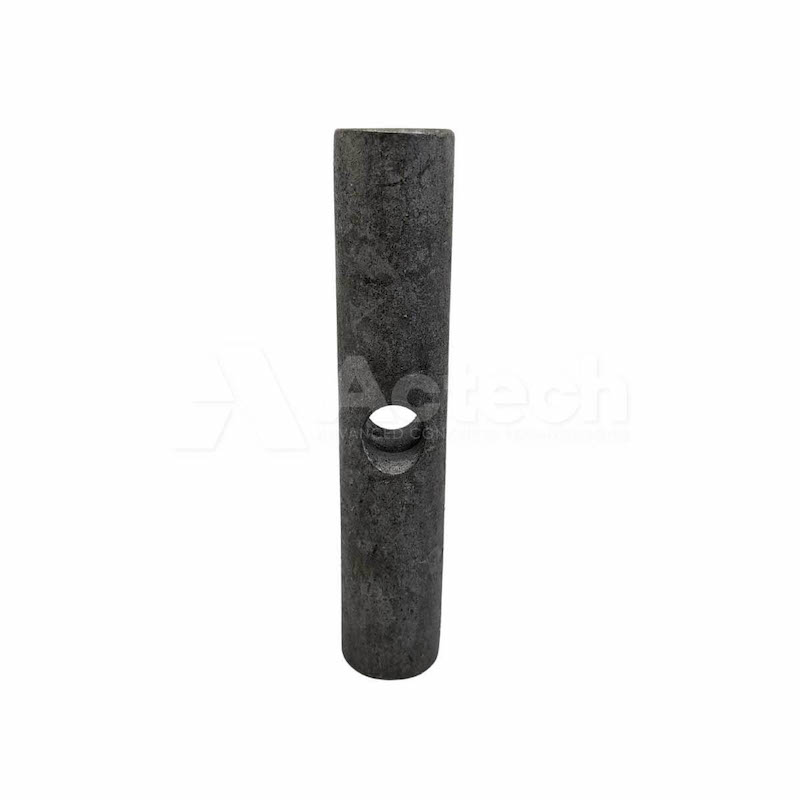

Double Ended Ferrule M20 x 130mm Gal Round

513020.DEF.GR In Stock
Login to see prices Array

ALTAS Double Ended Ferrule Range

Name Code Chemical Type Length Material Style Thread Thread-length Type Desc X-Hole
Duo DE Ferrule M20 x 85mm Zinc Hex 508520.DEF.ZH - 85 Zinc Hex M20 30 Double Ended Ferrule 15 Order
Duo DE Ferrule M20 x 85mm Gal Hex 508520.DEF.GH - 85 HDG Hex M20 30 Double Ended Ferrule 15 Order
Double Ended Ferrule M20 x 140mm Zinc Round 514020.DEF.ZR - 140 Zinc Round M20 33 Double Ended Ferrule 15 Order
Double Ended Ferrule M20 x 140mm Gal Round 514020.DEF.GR - 140 HDG Round M20 33 Double Ended Ferrule 15 Order
Double Ended Ferrule M20 x 130mm Zinc Round 513020.DEF.ZR - 130 Zinc Round M20 32 Double Ended Ferrule 15 Order
Double Ended Ferrule M20 x 130mm Gal Round 513020.DEF.GR - 130 HDG Round M20 32 Double Ended Ferrule 15 Order
Double Ended Ferrule M20 x 130mm Gal Hex 513020.DEF.GH - 130 HDG Hex M20 32 Double Ended Ferrule 15 Order
Duo DE Ferrule M16 x 85mm Zinc Hex 508516.DEF.ZH - 85 Zinc Hex M16 30 Double Ended Ferrule 15 Order
Duo DE Ferrule M16 x 85mm Gal Hex 508516.DEF.GH - 85 HDG Hex M16 30 Double Ended Ferrule 15 Order
Double Ended Ferrule M16 x 140mm Zinc Round 514016.DEF.ZR - 140 Zinc Round M16 33 Double Ended Ferrule 15 Order
Double Ended Ferrule M16 x 140mm Gal Hex 514016.DEF.GH - 140 HDG Hex M16 33 Double Ended Ferrule 15 Order
Double Ended Ferrule M16 x 130mm Zinc Round 513016.DEF.ZR - 130 Zinc Round M16 32 Double Ended Ferrule 15 Order
Double Ended Ferrule M16 x 110mm Zinc Hex 511016.DEF.ZH - 110 Zinc Hex M16 55 Ferrule 15 Order

Overview

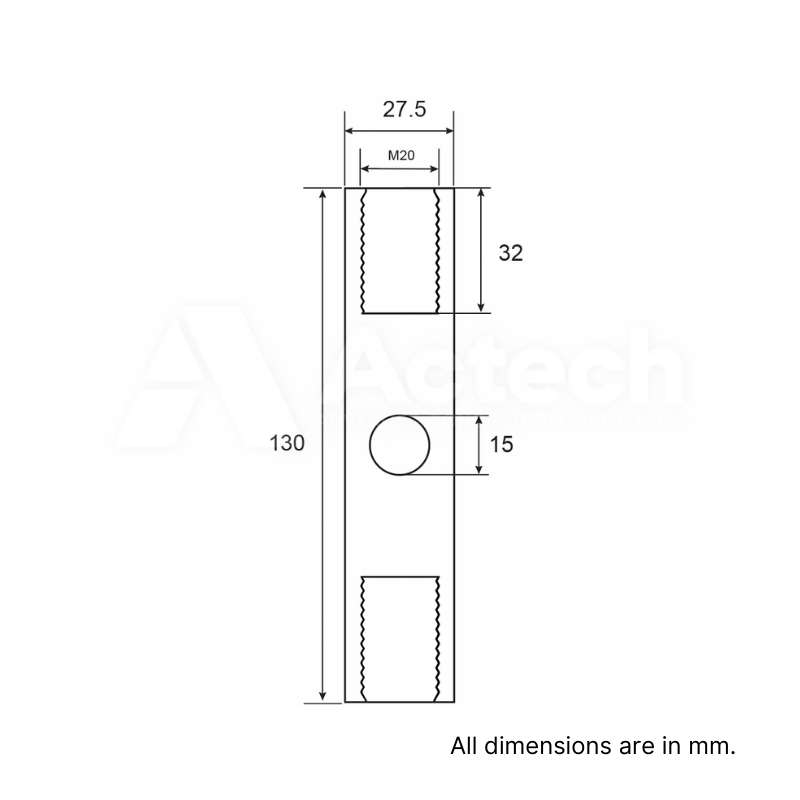

Double Ended Ferrule M20 x 130mm Gal Round

Specifications

SKU 513020.DEF.GR
Shipping Weight 0.44 kg
Chemical Type Double Ended Ferrule
Length 130
Material HDG
Style Round
Thread M20
Thread-length 32
Type Desc Double Ended Ferrule
X-Hole 15
