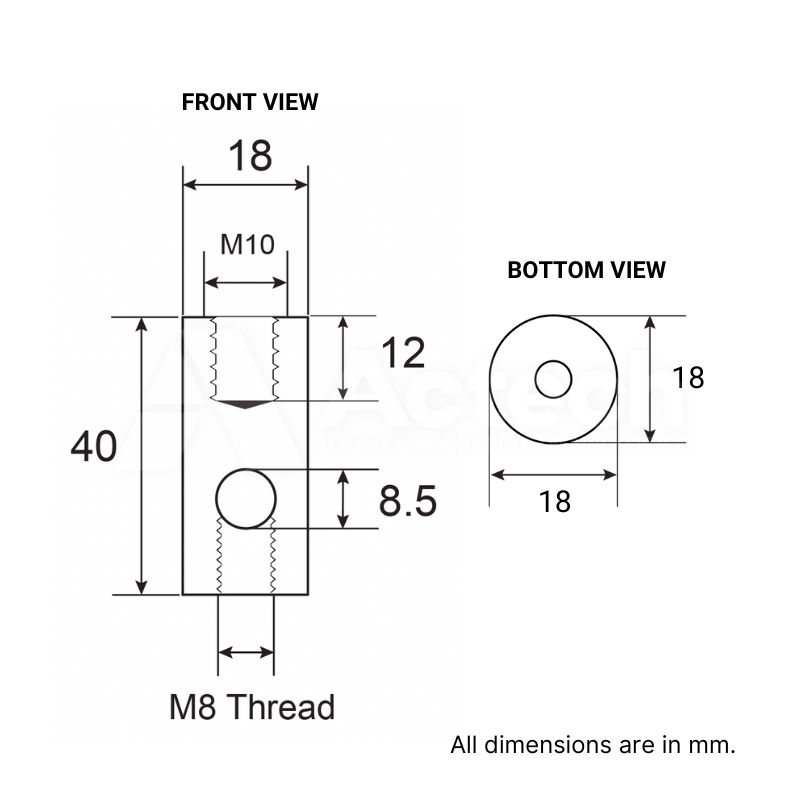

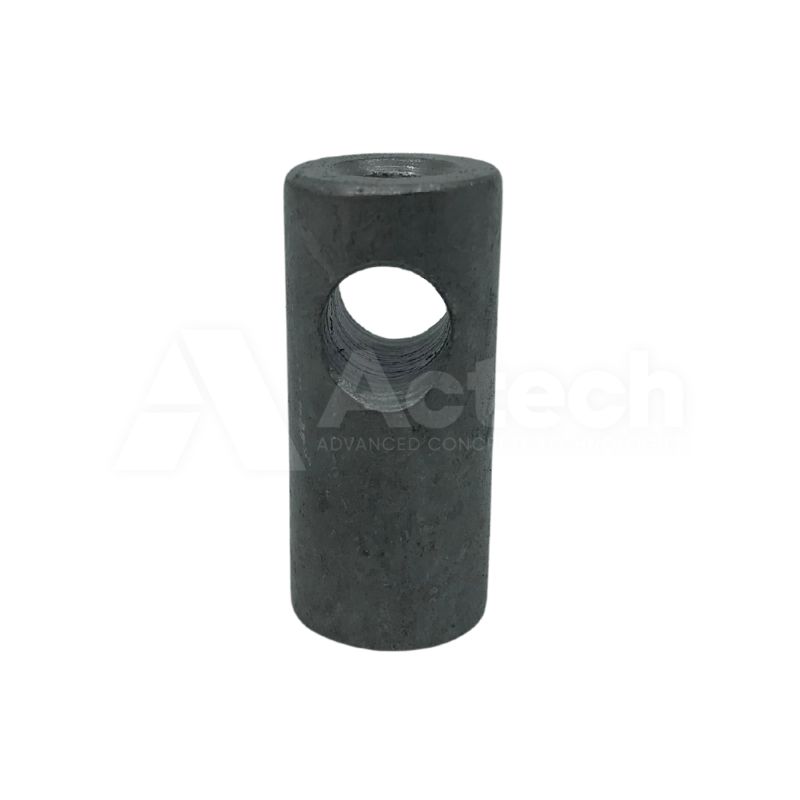

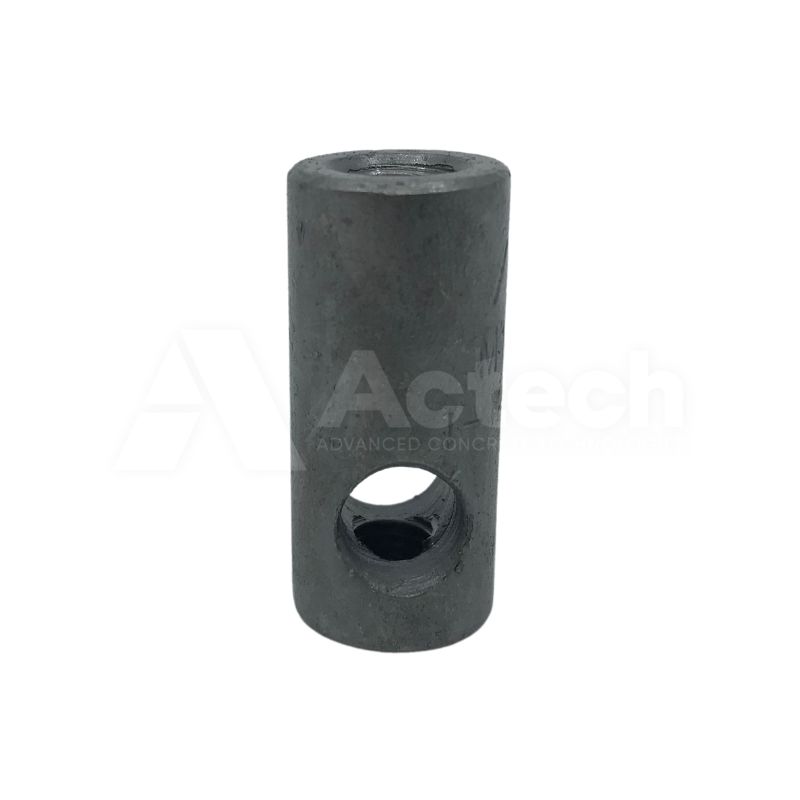

Duo Ferrule M10 x 40mm Gal Round OD – 18mm

504010.F.GR18
Login to see prices Array

ALTAS Round Ferrule Range

Name Code Chemical Type Effective Depth Length Material Style Thread Thread-length Type Desc X-Hole
Duo Ferrule M24 x 65mm Gal Round OD - 38mm 506524.F.GR38 - 49 65 HDG Round M24 25 Ferrule 18 Order
Duo Ferrule M24 x 96mm Zinc Round 509624.F.ZR - 80 96 Zinc Round M24 56 Ferrule 18 Order
Duo Ferrule M24 x 96mm HDG Round OD - 38mm 509624.F.GR38 - 80 96 HDG Round M24 55 Ferrule 18 Order
Duo Ferrule M24 x 76mm Gal Round OD - 38mm 507624.F.GR38 - 60 76 HDG Round M24 36 Ferrule 18 Order
Duo Ferrule M20 x 96mm Zinc Round 509620.F.ZR - 80 96 Zinc Round M20 61 Ferrule 15 Order
Duo Ferrule M20 x 96 SS316 Round 509620.F.S6R27 - 80 96 SS316 Round M20 61 Ferrule 15 Order
Duo Ferrule M20 x 96mm Gal Round 509620.F.GR - 80 96 HDG Round M20 61 Ferrule 15 Order
Duo Ferrule M20 x 76mm Zinc Round 507620.F.ZR - 60 76 Zinc Round M20 41 Ferrule 15 Order
Duo Ferrule M20 x 76mm Gal Round 507620.F.GR - 60 76 HDG Round M20 41 Ferrule 15 Order
Duo Ferrule M20 x 65 Gal Round 506520.F.GR - 49 65 HDG Round M20 30 Ferrule 15 Order
Duo Ferrule M16 x 96mm Zinc Round 509616.F.ZR - 80 96 Zinc Round M16 61 Ferrule 15 Order
Duo Ferrule M16 x 96mm Gal Round 509616.F.GR - 80 96 HDG Round M16 61 Ferrule 15 Order
Duo Ferrule M16 x 76 Zinc Round 507616.F.ZR - 60 76 Zinc Round M16 41 Ferrule 15 Order
Duo Ferrule M16 x 76mm Gal Round 507616.F.GR - 60 76 HDG Round M16 41 Ferrule 15 Order
Duo Ferrule M16 x 65mm Zinc Round 506516.F.ZR - 49 65 Zinc Round M16 30 Ferrule 15 Order
Duo Ferrule M16 x 65 Gal Round 506516.F.GR - 49 65 HDG Round M16 30 Ferrule 15 Order
Duo Ferrule M12 x 96mm Zinc Round OD - 22mm 509612.F.ZR22 - 80 96 Zinc Round M12 55 Ferrule 12.5 Order
Duo Ferrule M12 x 96mm Zinc Round 509612.F.ZR - 80 96 Zinc Round M12 61 Ferrule 15 Order
Duo Ferrule M12 x 96mm Gal Round 509612.F.GR - 80 96 HDG Round M12 61 Ferrule 15 Order
Duo Ferrule M12 x 76mm Gal Round 507612.F.GR - 60 76 HDG Round M12 41 Ferrule 15 Order
Duo Ferrule M10 x 60mm Zinc Round OD - 22mm 506010.F.ZR22 - 44 60 Zinc Round M10 25 Ferrule 15 Order
Duo Ferrule M10 x 40mm Gal Round OD - 18mm 504010.F.GR18 - 24 40 HDG Round M10 12 Ferrule 8.5 Order

Overview

Specifications

SKU 504010.F.GR18
Shipping Weight 0.058 kg
Chemical Type Ferrule
Effective Depth 24
Length 40
Material HDG
Style Round
Thread M10
Thread-length 12
Type Desc Ferrule
X-Hole 8.5

Documents
