Overview

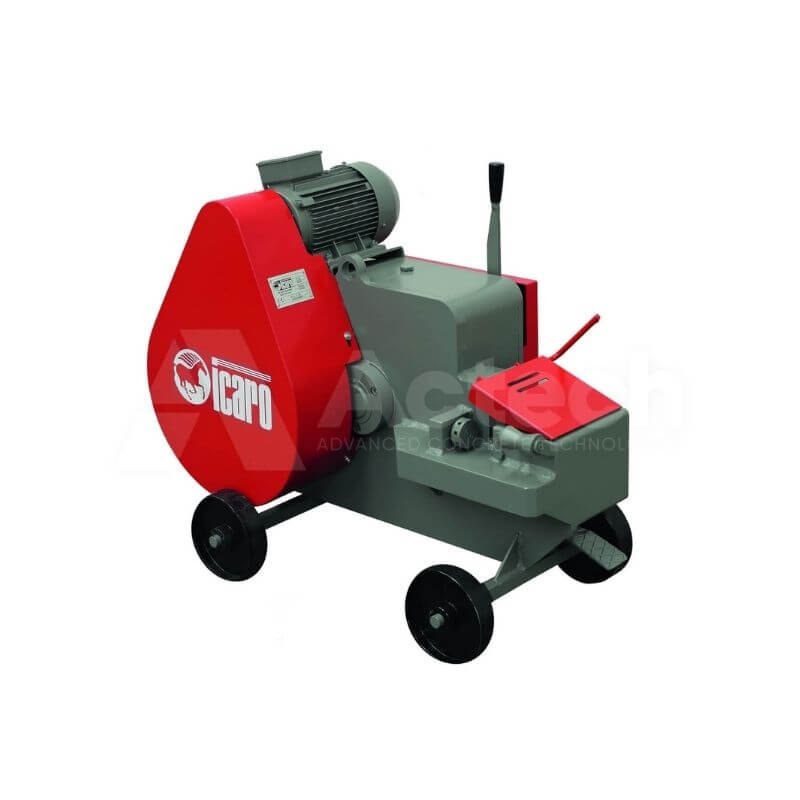

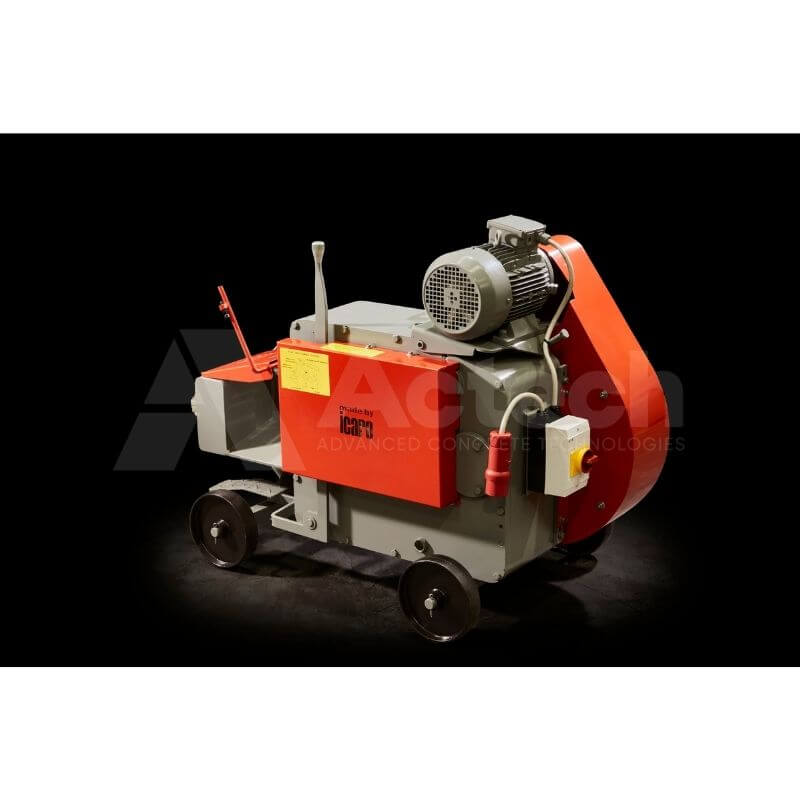

Icaro Cutters are conceived to cut threaded bars of any size and diameter. The mechanical cutter machines are robust and efficient. These machines are capable of sustaining extended periods of work in any kind of environment and they always guarantee peak performance. Their top quality internal mechanical components, made from 39-Chrome-Nickel steel, ensures unprecedented durability and strength over time.
The central gear is made out of one single piece of raw material and processed without any welding. Each piece is assigned a serial number so as to guarantee traceability. The Icaro cutter is fitted with steel blades made especially for cold-working, and their special shape allows for reuse for four times.
Technical Features and Cutting Capacity Table
|
MODEL
|
RPM
(50Hz) |
Motor
(50Hz) kW/HP |
Motor
(60Hz) kW/HP |
Grade 500 |
Weight (kg)
|
Grease
(kg) |
Dimensions (cm)
|
||
| 1 Bar Ø
(mm) |
2 Bars Ø (mm) | 3 Bars Ø (mm) | |||||||
| C26 | 90 | 2.2/3 | 2.64/3.5 | 26 | 18 | 10 | 470 | 3 | 105x61x82 |
| C32 | 90 | 2.2/3 | 2.64/3.5 | 34 | 20 | 12 | 470 | 3 | 105x61x82 |
| C36 | 90 | 2.2/3 | 2.64/3.5 | 38 | 22 | 14 | 475 | 3 | 105x61x82 |
| C42 | 90 | 3/4 | 3.6/5 | 42 | 22 | 14 | 600 | 4 | 120x80x96 |
| C55 | 40 | 5.5/7.5 | 6.6/9 | 54 | 32 | 20 | 781 | 4 | 130x80x106 |
| C62 | 40 | 7.5/10 | CUSTOM | 62 | 36 | 24 | 905 | 7 | 130x80x106 |
| C70 | 40 | 9.2/12.5 | CUSTOM | 70 | 42 | 28 | 1100 | 17 | 145x85x110 |
Key Points
Icaro cutters are made abiding by European CE standard and worldwide regulations. All machines have passed very stringent quality checks that abide by ISO9001/2008 norms.
All Icaro tests were carried out using threaded bars coming from all over the world. The threaded bars we used all followed these standards: DIN 488, BS 4449/2005, BS4449/97, ASTM/A706/ A706M-00, ASTM/A615M-2000, UNE 36068, LNEC E450, NEN6008 (NL), NF A 35080-1, SD490 with different GRADE and toughness.
