Icaro Mechanical Bender Range

Name Code
ICARO P70 Hp 10 Bender - Angle Control 7IBP70-A Order
ICARO P70 Hp 10 Bender - 5 bends 7IBP70-5 Order
ICARO P70 Hp 10 Bender 7IBP70 Order
ICARO P62 7.5Hp Bender - 4 Saddles - Angle Control 7IBP62-4-A Order
ICARO P62 7.5Hp Bender - 4 Saddles - 5 bends 7IBP62-4-5 Order
ICARO P62 7.5Hp Bender - 4 Saddles 7IBP62-4 Order
ICARO P55 7.5Hp Bender - Angle Control 7IBP55-A Order
ICARO P55 7.5Hp Bender - Angle Control 7IBP55-4-A Order
ICARO P55 7.5Hp Bender - 5 bends 7IBP55-5 Order
ICARO P55 7.5Hp Bender - 4 Saddles - 5 bends 7IBP55-4-5 Order
ICARO P55 7.5Hp Bender - 4 Saddles 7IBP55-4 Order
ICARO P55 7.5Hp Bender 7IBP55 Order
ICARO P52 5.5Hp Bender - Angle Control 7IBP52-A Order
ICARO P52 5.5Hp Bender - 5 bends 7IBP52-5 Order
ICARO P52 5.5Hp Bender 7IBP52 Order
ICARO P42 4Hp Bender - Angle Control 7IBP42-A Order
ICARO P42 4Hp Bender - 5 bends 7IBP42-5 Order
ICARO P42 4Hp Bender 7IBP42 Order
ICARO P36 4Hp Bender - Angle Control 7IBP36-A Order
ICARO P36 4Hp Bender - 5 bends 7IBP36-5 Order
ICARO P36 4Hp Bender 7IBP36 Order
ICARO P32 3Hp Bender - Angle Control 7IBP32-A Order
ICARO P32 3Hp Bender - 5 bends 7IBP32-5 Order
ICARO P32 3Hp Bender 7IBP32 Order
ICARO P26 2.5Hp Bender Single Phase 7IBP26-S Order
ICARO P26 2.5Hp Bender - Angle Control 7IBP26-A Order
ICARO P26 2.5Hp Bender - 5 bends 7IBP26-5 Order
ICARO P26 2.5Hp Bender 7IBP26 Order

Overview

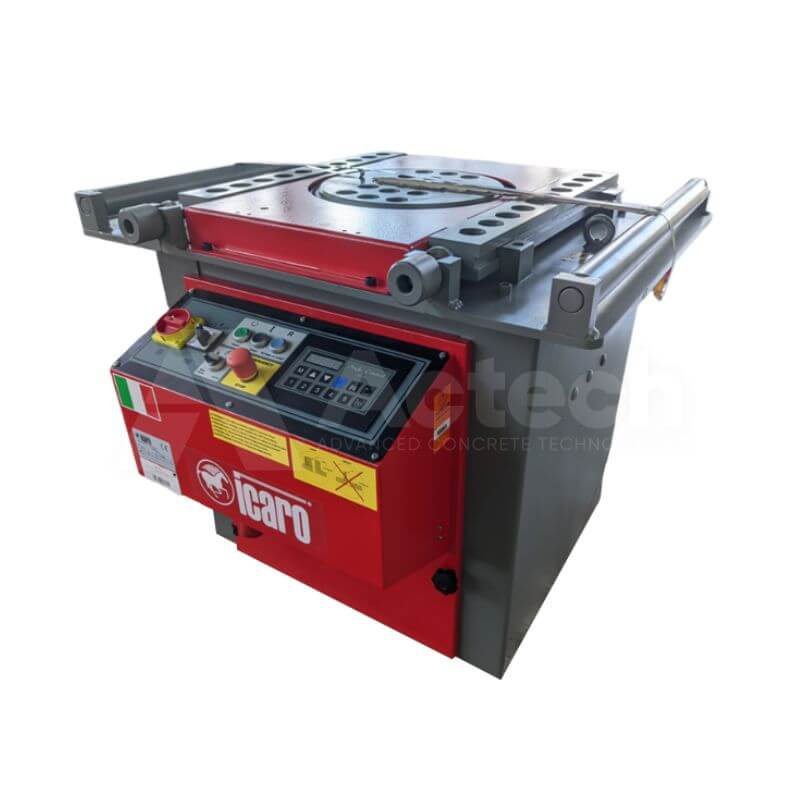

Icaro Benders are designed to be highly productive and enduring over time. In order to make them extremely versatile, Icaro machines were conceived in different versions: they can be fitted with a high or low working bench, with two or four saddles, either long or short. Final users will therefore be able to operate them freely and with a great level of ease, according to their needs.

The powerful gearbox, made of robust laminate and immersed in a special oil bath, doesn’t require any kind of maintenance. All inside components are built in special, heat-treated steel; additionally, helical gears allow for the workload to be evenly distributed among them, so as to make them virtually undestroyable.

All reduction and other gears are assigned a serial number so as to guarantee traceability. Icaro benders are equipped with a self-braking motor and the electrical wiring components all come from the most renowned suppliers.

Versatility is what really distinguishes Icaro benders from other products of the same type: a high working bench makes maintenance procedures really easy because it avoids the sedimentation of metal powder on the working disc and in the gearbox. Being able to choose between long or short saddles gives end users great freedom while working and when installing optionals.

Technical Features and Bending Capacity Table

MODEL
RPM
(50Hz)
Motor
(50Hz)
kW/HP
Motor
(60Hz)
kW/HP
Grade 500
Weight (kg)
Grease
(kg)
Dimensions (cm)
1 Bar Ø (mm) 2 Bars Ø (mm) 3 Bars Ø (mm)
P26 13 1.85/2.5 CUSTOM 26 18 14 350 3 68x61x83
P32 9 2.2/3 3.6/5 34 26 20 350 5 76x70x83
P36 9 3/4 3.6/5 34 26 20 365 8 86x90x85
P42 6 3/4 4.8/6.5 42 30 24 500 8 100x90x89
P52 6 4/5.5 4.8/6.5 50 34 28 590 10 110x91x89
P55 5 5.5/7.5 6.6/9 54 34 30 620 13 110x100x89
P62 5 5.5/7.5 6.6/9 60 40 32 1000 18 150x100x100
P70 5 7.5/10 CUSTOM 70 42 36 1200 25 160x115x90

Key Points

Icaro benders are made abiding by European CE standard and worldwide regulations. All machines have passed very stringent quality checks that abide by ISO9001/2008 norms.

All Icaro tests were carried out using threaded bars coming from all over the world. The threaded bars we used all followed these standards: DIN 488, BS 4449/2005, BS4449/97, ASTM/A706/ A706M-00, ASTM/A615M-2000, UNE 36068, LNEC E450, NEN6008 (NL), NF A 35080-1, SD490 with different GRADE and toughness.

The heat treating process used on all equipment is the result of numerous years of studying and experience in our field; the variety of bars used to test the components of Icaro machines represents all the possible degrees of hardness available on the market.

All components have proven great endurance. All pins are made of 18NiCR steel and have been through a carbonitriding and tempering process.

Specifications

SKU 7IBP42-A
Shipping Weight 545 kg

Documents

P42 Bender TDS (Technical Data)
