ALTAS Bigfoot Ferrule SS316 Range

Name Code Chemical Type Effective Depth Length Material Style Thread Thread-length Type Desc X-Hole
BigFoot Ferrule M24 x 96mm SS316 - Square Base 509624.F.S6SB - - 96 SS316 BigFoot Square Base M24 58 Ferrule 18 Order
BigFoot Ferrule M24 x 120mm SS316 512024.F.S6SB - - 120 SS316 BigFoot Square Base M24 51 - 18 Order
BigFoot Ferrule M20 x 96mm SS316 509620.F.S6BF - 90 96 SS316 BigFoot M20 55 Ferrule 15 Order
BigFoot Ferrule M20 x 76mm SS316 507620.F.S6BF - 70 76 SS316 BigFoot M20 38 Ferrule 15 Order
BigFoot Ferrule M20 x 65mm SS316 506520.F.S6BF - - - - - - - - - Order
BigFoot Ferrule M20 x 120mm SS316 512020.F.S6BF - 114 120 SS316 BigFoot M20 65 Ferrule 15 Order
BigFoot Ferrule M16 x 96mm SS316 509616.F.S6BF - 90 96 SS316 BigFoot M16 55 Ferrule 15 Order
BigFoot Ferrule M16 x 76mm SS316 507616.F.S6BF - 70 76 SS316 BigFoot M16 38 Ferrule 15 Order
BigFoot Ferrule M16 x 65mm SS316 506516.F.S6BF - 59 65 SS316 BigFoot M16 30 Ferrule 15 Order
BigFoot Ferrule M12 x 96 SS316 509612.F.S6BF - 90 96 SS316 BigFoot M12 55 Ferrule 10.2 Order
BigFoot Ferrule M12 x 76 SS316 507612.F.S6BF - 70 76 SS316 BigFoot M12 38 Ferrule 12 Order
BigFoot Ferrule M12 x 55mm SS316 505512.F.S6BF - 49 55 SS316 BigFoot M12 22 Ferrule 12 Order

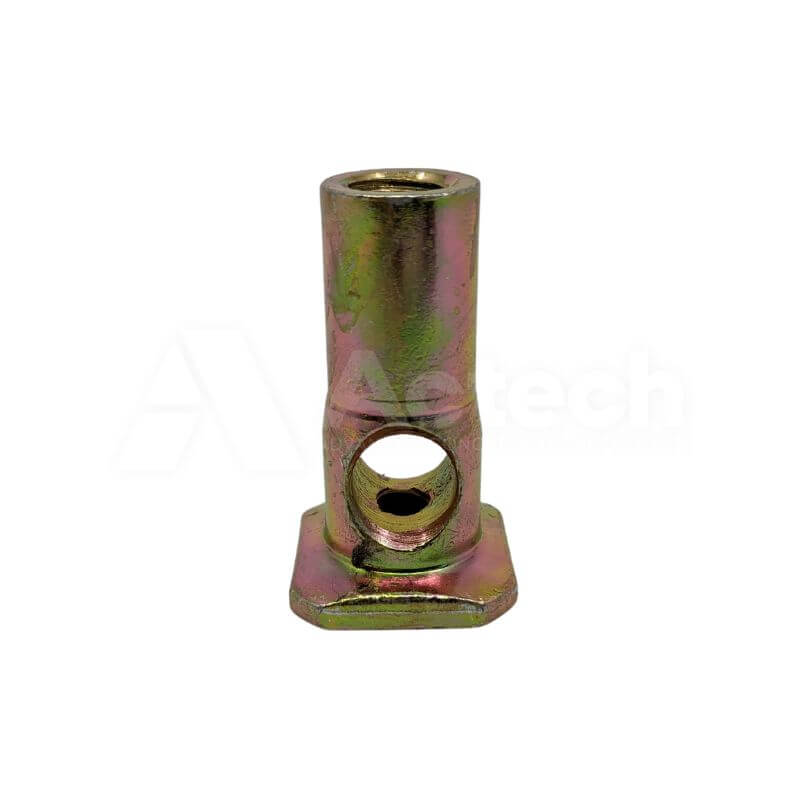

BigFoot Ferrule M12 x 50mm SS316 505012.F.S6BF - 44 50 SS316 BigFoot M12 19.5 Ferrule 12 Order
BigFoot Ferrule M10 x 45mm SS316 504510.F.S6BF - 41 45 SS316 BigFoot M10 22 Ferrule 8 Order

Overview

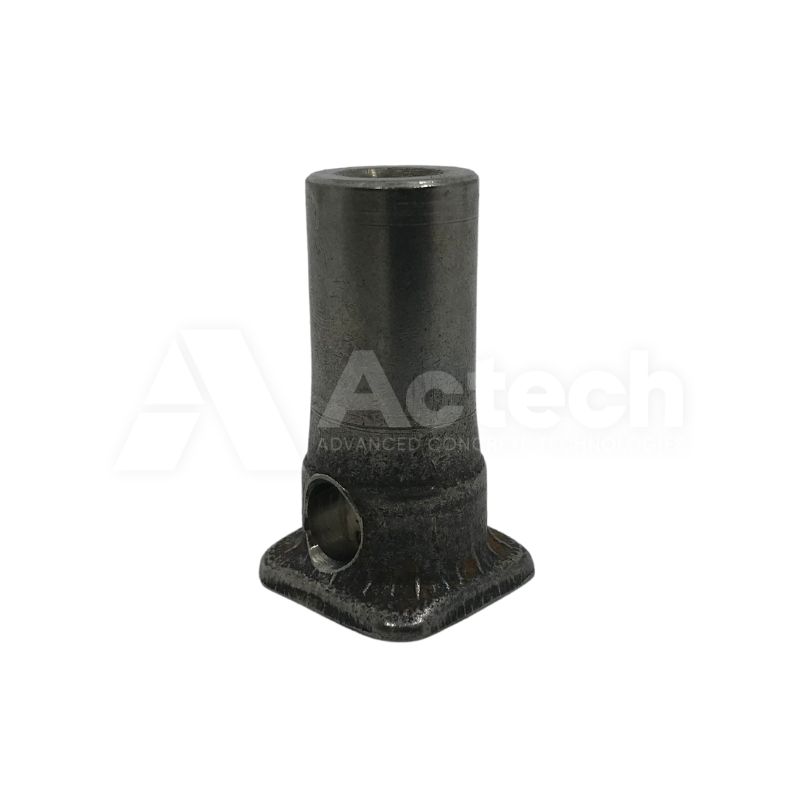

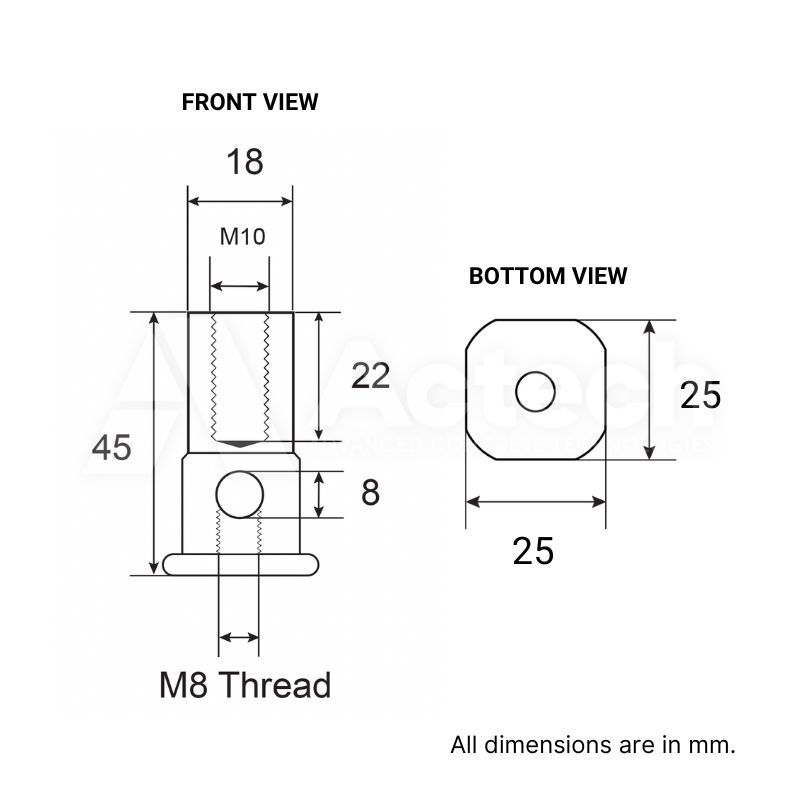

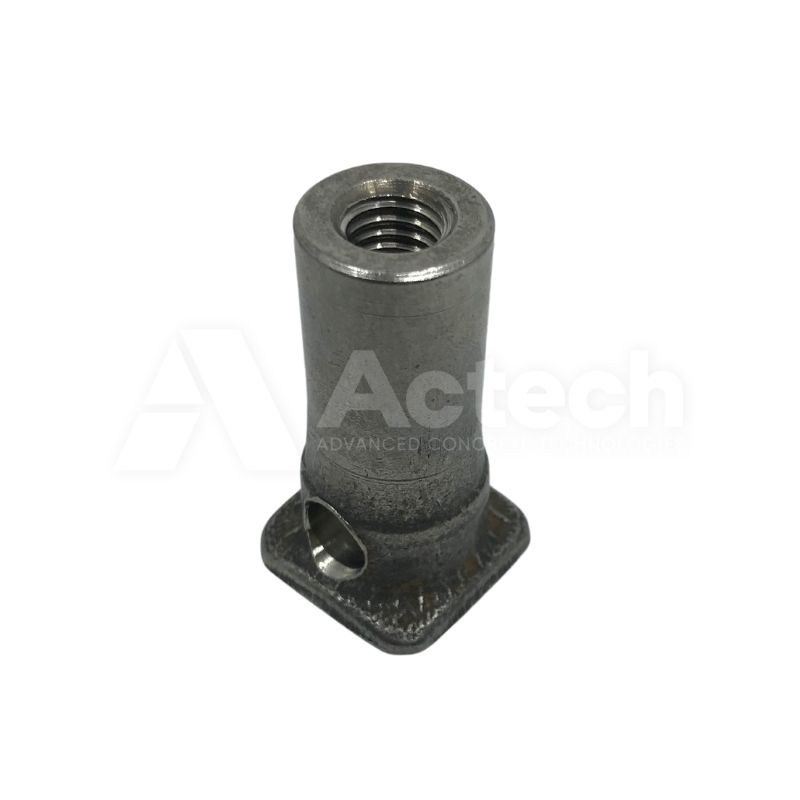

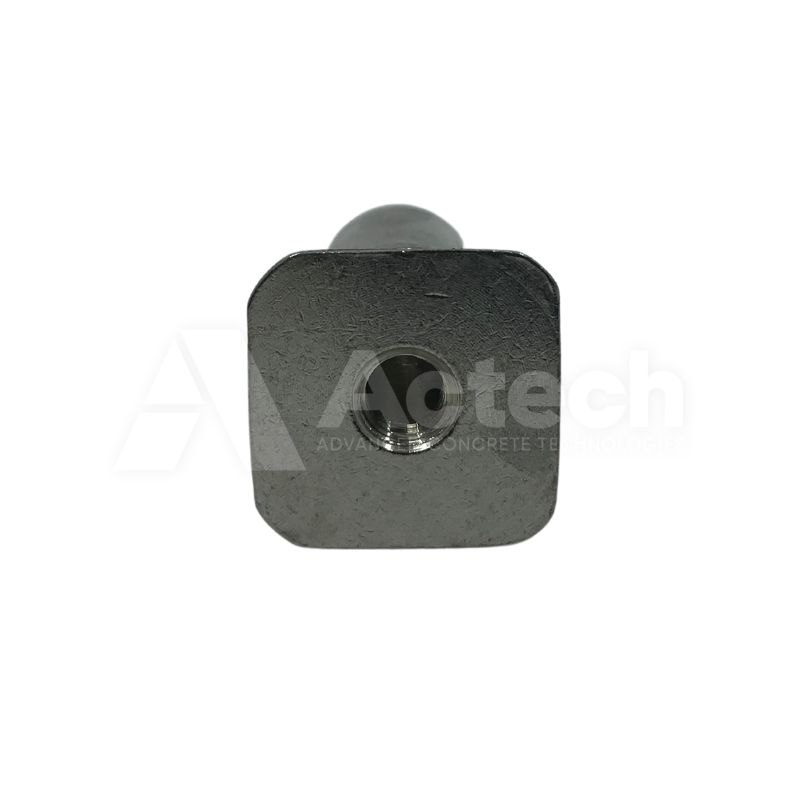

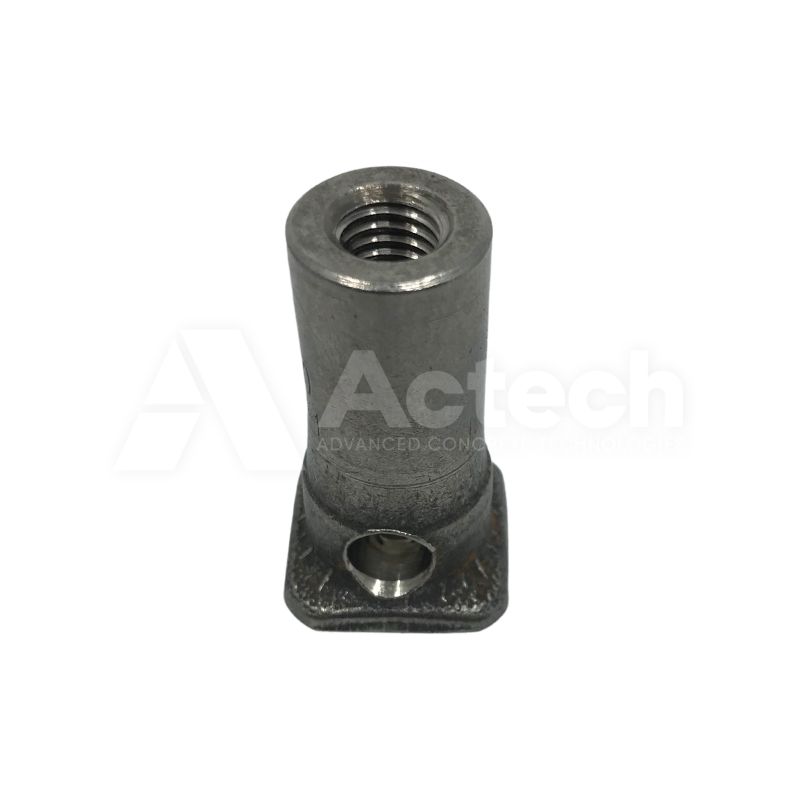

BigFoot Ferrule M10 x 45mm SS316

Specifications

SKU 504510.F.S6BF
Shipping Weight 0.08286 kg
